SELECT A DIAGRAM

01 - Top And Cabinet Parts

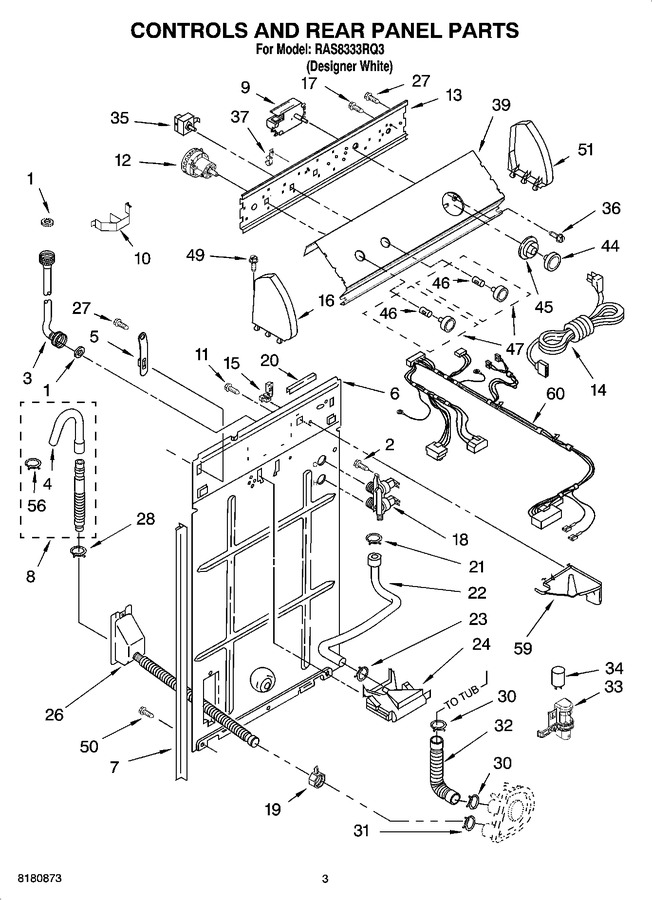

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 8.16
2	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 8.58
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 8.17
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
9	WP8546685		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8546685)				$ 436.09
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
12	W10820051		Switch, Water Level   (Replaces: 3366848)			Immediately	$ 169.68
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 122.00
14	661661		Cord, Power (includes Illus. 15)				$ 25.46
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	279960		Cap, End (l.h.) (console)   (Replaces: 8274437)				$ 87.57
17	3400073		Screw, Ground		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	3976395		Clamp, Hose				$ 11.96
20	303294		Edge Protector		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.82
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
26	WPW10358149		Drain Hose Assembly   (Replaces: 8317940)			Immediately	$ 48.16
27	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
28	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 28.99
33	8318046		Clip, Capacitor				$ 79.31
34	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
35	WPW10168256		Switch, Water Temperature   (Replaces: 661612)			Immediately	$ 135.25
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 8.81
37	8317975		Retainer, Harness				$ 5.86
39	3956986		Panel, Console		Appelez-nous	-
44	W10807860		Knob, Timer   (Replaces: 3956906)			Immediately	$ 52.47
45	3957381		Dial, Timer		Appelez-nous	-
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
47	8557460		Knob, Control				$ 23.37
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
56	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 8.19
59	8539874		Shield, Suds				$ 7.01
60	3976263		Miscellaneous Parts Bag		Appelez-nous	-
60	3957014		Harness, Wiring (for Detail See Page 9 & 10)				$ 109.71
60	N/A		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
