01 - Top And Cabinet Parts

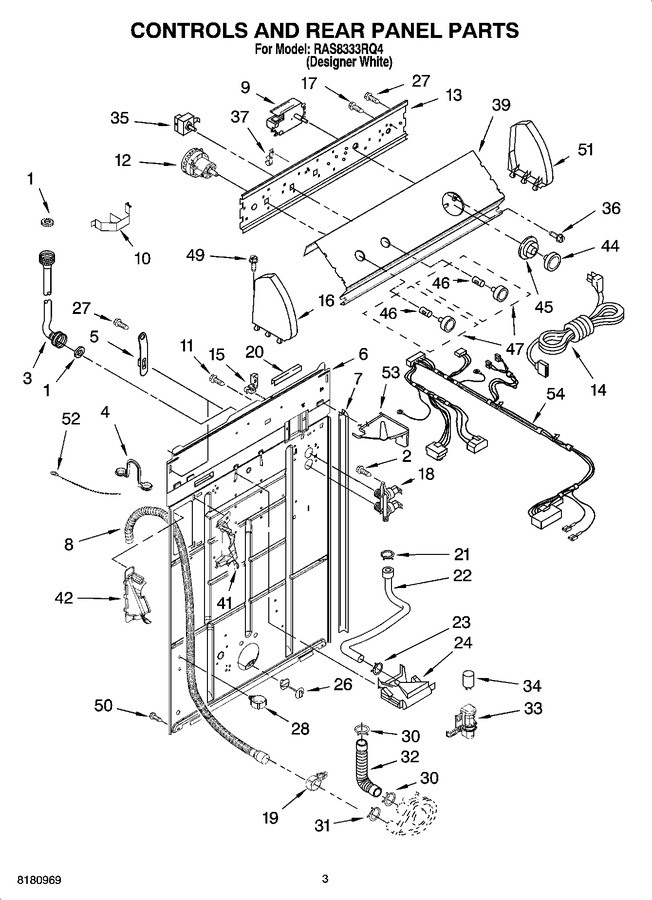

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
4	WP8577378		U-bend, Drain Hose   (Replaces: 8541672)				$ 7.97
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 19 & 28)   (Replaces: 8559373)			Immediately	$ 67.38
9	WP8546685		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8546685)				$ 415.32
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
12	W10820051		Switch, Water Level   (Replaces: 3366848)			Immediately	$ 169.68
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 116.19
14	661661		Cord, Power (includes Item 15)				$ 25.46
15	8559349		Strain Relief, Power Cord		Appelez-nous	-
16	279960		Cap, End (l.h.) (console)   (Replaces: 8274437)				$ 83.40
17	3400073		Screw, Ground		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	8541668		Clamp, Hose				$ 21.26
20	303294		Edge Protector		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
28	8541667		Clamp, Hose				$ 5.86
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8318046		Clip, Capacitor				$ 79.31
34	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
35	WPW10168256		Switch, Water Temperature   (Replaces: 661612)			Immediately	$ 128.81
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	8317975		Retainer, Harness				$ 5.86
39	3956986		Panel, Console		Appelez-nous	-
41	WPW10096921		Bucket, Drain Hose   (Replaces: 8541669)			Immediately	$ 67.38
42	WPW10096921		Bucket, Drain Hose   (Replaces: 8541658)			Immediately	$ 67.38
44	W10807860		Knob, Timer   (Replaces: 3956906)			Immediately	$ 49.97
45	3957381		Dial, Timer		Appelez-nous	-
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
47	8557460		Knob, Control				$ 23.37
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 83.40
52	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
53	8539874		Shield, Suds				$ 7.01
54	3957361		Miscellaneous Parts Bag		Appelez-nous	-
54	3957014		Harness, Wiring (for Detail See Page 9 & 10)				$ 109.71
54	N/A		Following Parts Not Illustrated		Appelez-nous	-
