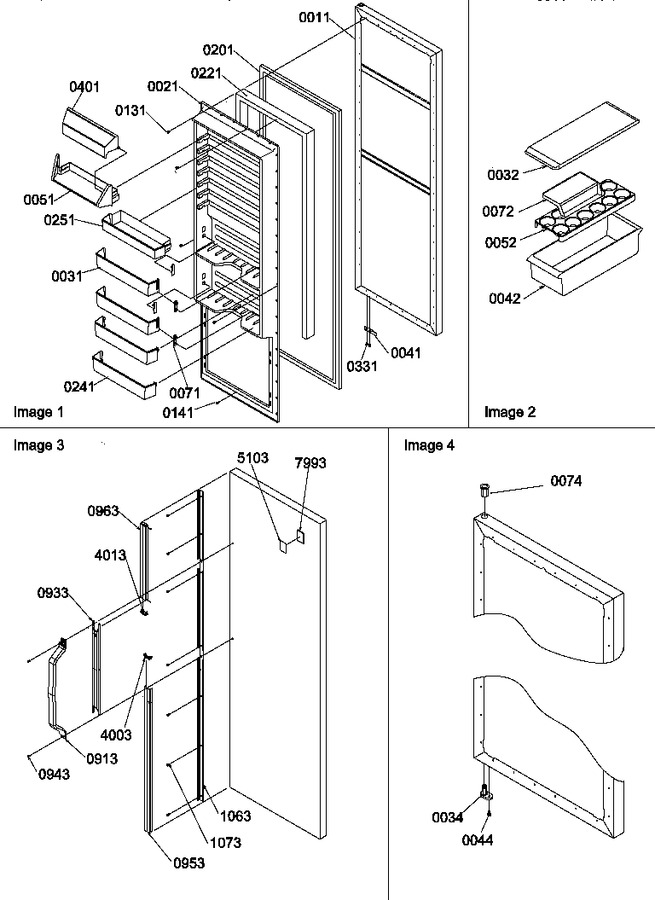

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881301L		Ass`y, Ref Door(almond) Btm		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520410		Shelf, Chiller		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8972406		Stop, L Door		Appelez-nous	-
42	10423129		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
52	10436506		Tray, Egg				$ 8.28
71	10202001		Clip, Retainer		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
74	10961001		Bushing, Door (wht)		Appelez-nous	-
131	M0219730		Screw				$ 7.65
141	M0226705		Screw, Shoulder		Appelez-nous	-
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521814		Shelf-ref Door		Appelez-nous	-
251	12083406		Ref Dr Bucket		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
913	12139305		Handle, Door (almond)		Appelez-nous	-
933	10810402		Trim, L Ctr Door		Appelez-nous	-
943	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
953	10810510		Trim, Bot Ref Dr L		Appelez-nous	-
963	10810310		Trim-l Top Ref Dr		Appelez-nous	-
1063	10852214		Retainer-ref Trim		Appelez-nous	-
1073	M0216517		Screw		Appelez-nous	-
4003	10953113		Insert, Door Trim		Appelez-nous	-
4013	10953114		Insert, Trim (almond)		Appelez-nous	-
5103	10992102		Insert- L Nameplate		Appelez-nous	-
7993	10992002		Base, Nameplate		Appelez-nous	-
