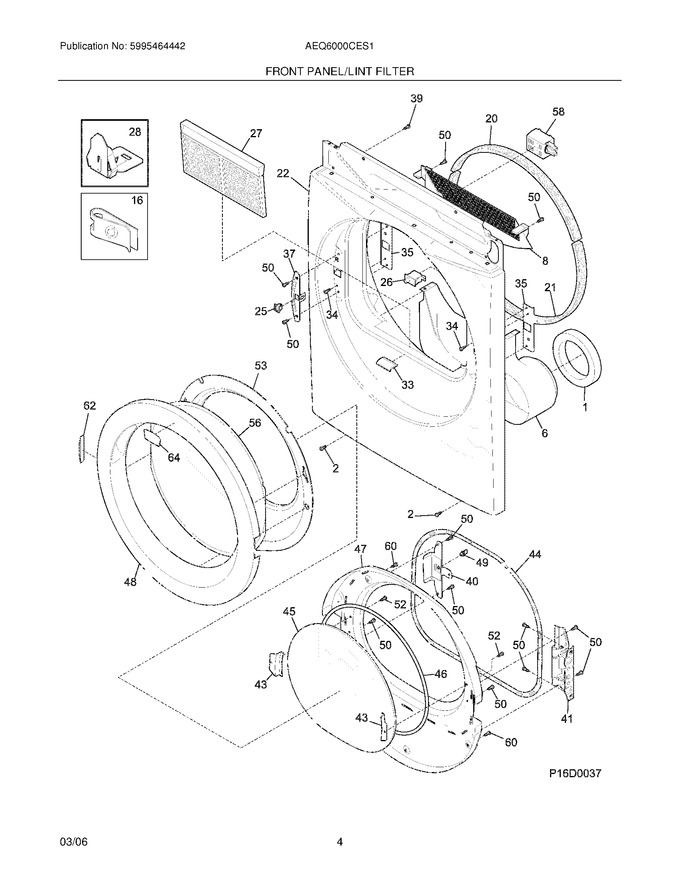

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal,air Duct			Immediately	$ 10.24
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
6	134382900		Duct,air				$ 183.12
16	134440100		Clip,u-nut				$ 7.30
20	134440200		Seal,felt ,upper			Immediately	$ 45.82
21	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 39.86
22	134733510		Panel,front ,white ,w/lamp Hole		Appelez-nous	-
25	131658800		Latch,door ,lower   (Replaces: 134548000)			Immediately	$ 75.98
27	131450300		Trap,lint Blade Assy			Immediately	$ 33.86
28	134440000		Clip,guide		Appelez-nous	-
33	134737200		Guide,door				$ 52.61
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
35	134559200		Plate,hinge Support ,(2)				$ 13.39
37	134559410		Plate,door Catch ,white				$ 14.49
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 15.75
40	134559510		Plate,door Strike ,white				$ 11.71
41	134559100		Hinge,door		Appelez-nous	-
43	134559300		Bracket,door Glass				$ 11.34
44	137553402		Gasket,door Seal   (Replaces: 134720900)				$ 96.80
45	134611800		Glass,inner Door		Appelez-nous	-
46	134580300		Gasket,door Glass ,inner				$ 73.90
47	134558510		Panel,inner Door ,white		Appelez-nous	-
48	137577600		Panel,outer Door ,white   (Replaces: 134558400)				$ 206.44
49	5303207102		Door Strike   (Replaces: 134548100)			Immediately	$ 22.05
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
52	131243700		Screw,indt Pan Head ,8-18ab X 0.375   (Replaces: 134529600)				$ 3.73
53	134558600		Ring,door Transition		Appelez-nous	-
56	137577700		Glass,outer Door Lens   (Replaces: 134550600)				$ 249.82
60	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 16.54
62	134559600		Plug,hinge Cutout ,white		Appelez-nous	-
64	134601600		Nameplate,affinity		Appelez-nous	-
F26	134813601		Switch,door ,with Drum Light   (Replaces: 131843101)			Immediately	$ 36.77
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 81.11
F8	131845802		Cover,lint Housing ,w/moist Sensor				$ 175.40
NI	134554500		Pad,outer Door				$ 14.60
NI	5308027429		Adhesive, High Temp			Immediately	$ 66.94
NI	131843500		Lamp   (Replaces: 131862800)				$ 81.11
