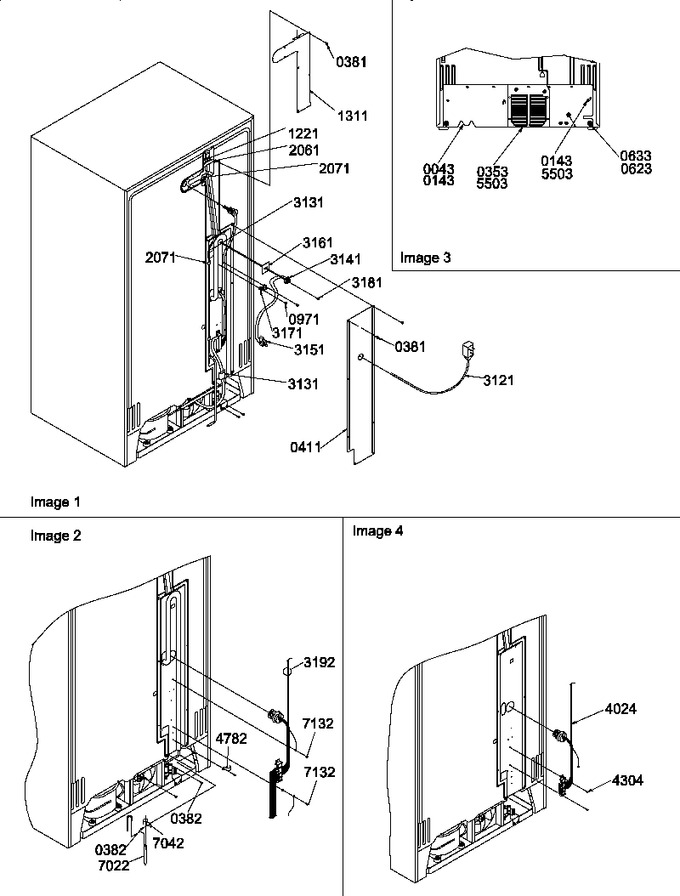

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
43	12041612		Assy, Mc Back		Appelez-nous	-
143	M0201216		Screw - Sm		Appelez-nous	-
353	12039903		Back, M.c.		Appelez-nous	-
381	M0227217		Screw, Sm		Appelez-nous	-
382	M0227217		Screw, Sm		Appelez-nous	-
411	10178406		Cover, O.c.back		Appelez-nous	-
623	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
633	C8960601		Foot, Outer Case		Appelez-nous	-
971	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1221	M0310319		Plug Button		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
3121	B5669005		Cord, Power		Appelez-nous	-
3131	M0104102		Clip, Cord				$ 8.10
3141	C8969204		Block, Term		Appelez-nous	-
3151	10786301		Jumper, Pwr Cord		Appelez-nous	-
3161	10377602		Insulation, Term Block		Appelez-nous	-
3171	Y10203701		Strain Relief		Appelez-nous	-
3181	M0219758		Screw		Appelez-nous	-
3192	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
4024	12187101		Harness-cabinet		Appelez-nous	-
4304	WP489399		Screw   (Replaces: M0232903)				$ 7.30
4782	B5794201		Clamp		Appelez-nous	-
5503	M0227217		Screw, Sm		Appelez-nous	-
7022	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7042	10547001		Clip, Drier		Appelez-nous	-
7132	WP489399		Screw   (Replaces: M0239217)				$ 7.30
