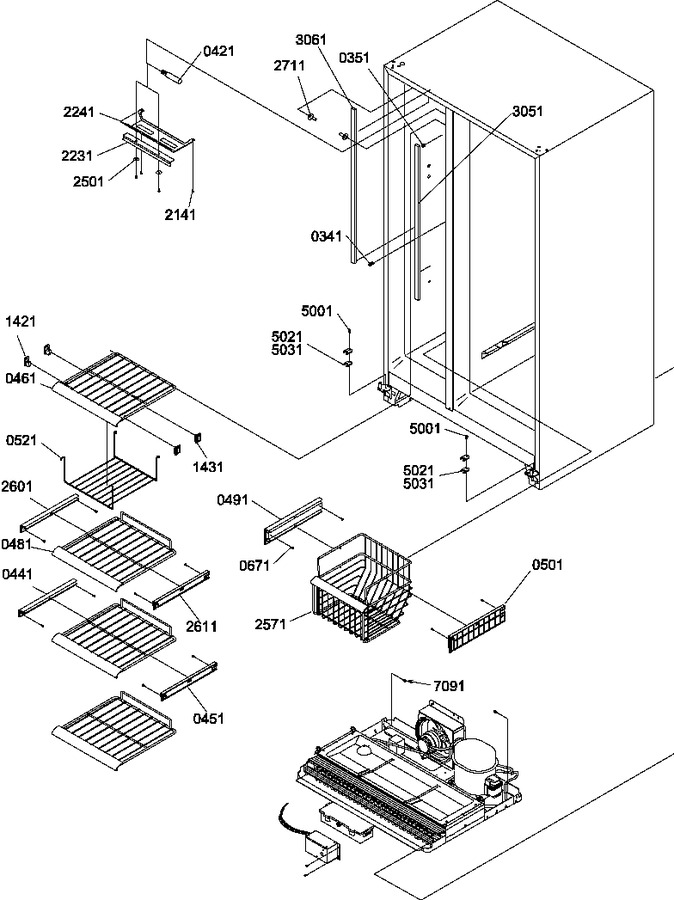

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 341 | M0322202 | Tie Wire |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 441 | 12012801 | Rail, L. Shelf |
|
- | |||||
| 451 | 10991401 | Rail- R Shelf |
|
- | |||||
| 461 | 12012501 | Shelf, Stat. Freezer |
|
- | |||||
| 481 | 12012102 | Shelf, Sld. Freezer |
|
- | |||||
| 491 | 12013001 | Rail, L. Dbl Shelf |
|
- | |||||
| 501 | 10991801 | Rail, R Double |
|
- | |||||
| 521 | 12013901 | Rack, Freezer |
|
- | |||||
| 671 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1421 | 12015002 | Support, Shelf (lt) |
|
$ 7.38 | |||||
| 1431 | WP10941102 | Support, Shelf (rt) |
|
$ 11.81 | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2231 | 10014715 | Shield, Light |
|
- | |||||
| 2241 | 10493302 | Cover, Frz Light |
|
- | |||||
| 2501 | M0270508 | Washer |
|
- | |||||
| 2571 | 12011902 | Basket, 11`` Freezer |
|
- | |||||
| 2601 | 12012802 | Rail, L. Shelf |
|
- | |||||
| 2611 | 10991402 | Rail, R Shelf |
|
- | |||||
| 2711 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 3051 | A3189347 | Gasket |
|
- | |||||
| 3061 | A3189346 | Gasket |
|
- | |||||
| 5001 | W11227370 | Screw, Tc (Replaces: M0220431) |
|
Immediately | $ 14.91 | ||||
| 5021 | B8387703 | Shim, Door Closure |
|
- | |||||
| 5031 | WP67005716 | Shim, Dr Closure (blk) (Replaces: B8387704) |
|
$ 7.83 | |||||
| 7091 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
