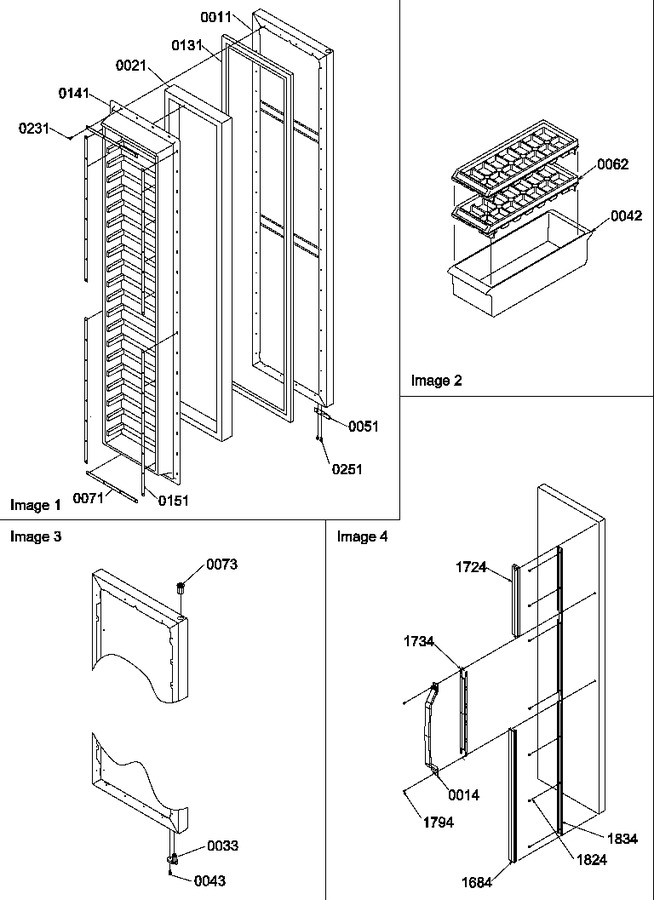

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10547306W		Assy, Fz Dr Fm (white)		Appelez-nous	-
14	12139304		Handle, Door (white)		Appelez-nous	-
21	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
33	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
42	10423128		Bin-utility		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	C8972405		Stop-w Door		Appelez-nous	-
62	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
71	C8982801		Retainer, Door Liner		Appelez-nous	-
73	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
131	10359709		Gasket (w Frz Dr)		Appelez-nous	-
141	10522001		Liner, Frz Door (conv.)		Appelez-nous	-
151	D7828601		Retainer, Door Liner		Appelez-nous	-
231	M0219730		Screw				$ 7.65
251	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1684	10810507		Trim, Bottom Door W Frz		Appelez-nous	-
1724	10810307		Trim-w Top Fz Dr		Appelez-nous	-
1734	10810401		Trim-w Ctr Dr		Appelez-nous	-
1794	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1824	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
1834	10852213		Retainer-fz Trim		Appelez-nous	-
NI	10953111		Insert, Trim(white)		Appelez-nous	-
NI	10953112		Insert, Trim(white)		Appelez-nous	-
