SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Control Assy


04 - Deli, Shelves, Crisper Assemblies


05 - Drain, Rollers, And Evaporator Assy


06 - Freezer Door


07 - Freezer Shelves And Lights


08 - Ice Maker Parts And Add On Ice Maker Kit


09 - Lights, Hinges, And Shelving Assy


10 - Machine Compartment & Muffler Assy


11 - Refrigerator Door, Trim And Handles

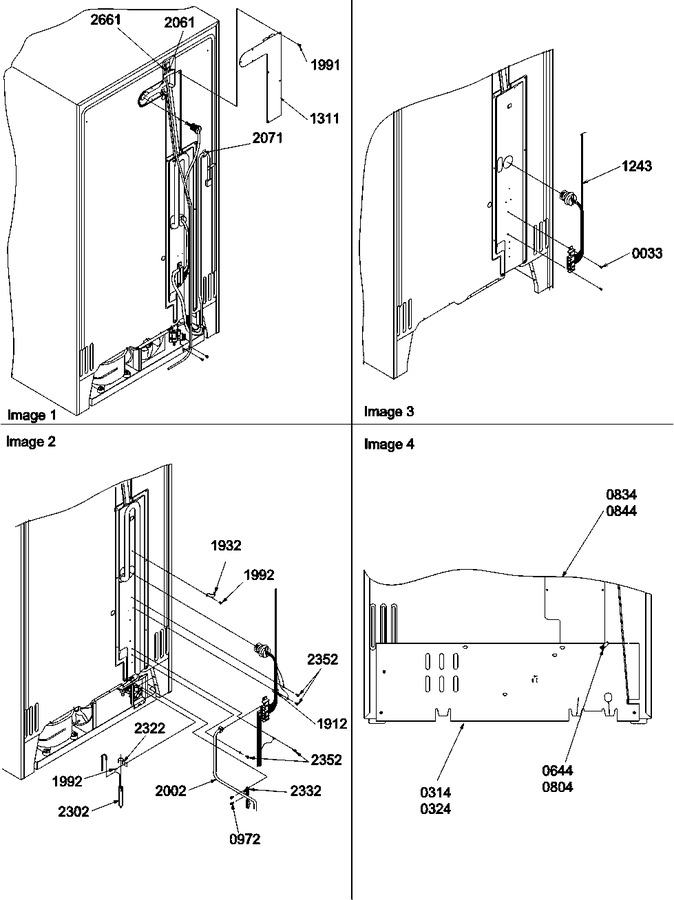

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
314	D7788914		Assy,mc Back		Appelez-nous	-
324	M0201216		Screw - Sm		Appelez-nous	-
644	M0108001		Clamp, Tube		Appelez-nous	-
804	M0227217		Screw, Sm		Appelez-nous	-
834	10178405		Cover, O.c.back		Appelez-nous	-
844	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
972	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1243	10893703		Harness, Cabinet		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
1912	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
1932	B5794201		Clamp		Appelez-nous	-
1991	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
1992	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
2002	12356406		Cord, 106`` Power		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
2302	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
2322	10547002		Clip, Drier		Appelez-nous	-
2332	Y10203701		Strain Relief		Appelez-nous	-
2352	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
2661	M0310316		Plug Button		Appelez-nous	-
