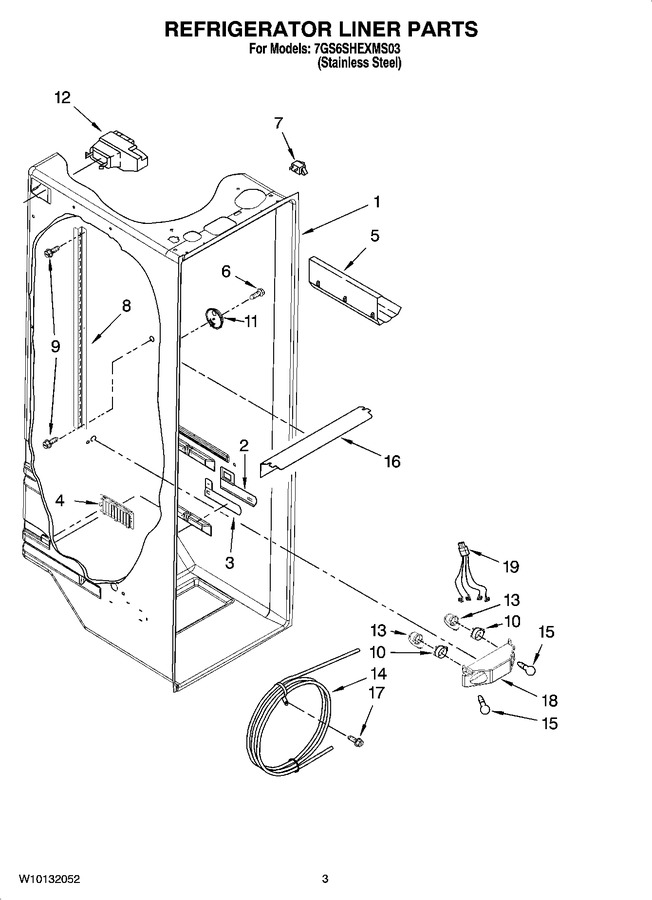

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 91.28 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2257741 | Louver |
|
- | |||||
| 5 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 23.60 | |||||
| 6 | W10759522 | Screw (Replaces: W10004810) |
|
$ 7.75 | |||||
| 7 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 8 | 2319866 | Shelf Ladder |
|
$ 22.16 | |||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 10 | WP2175210 | Shroud, Light (Replaces: 2169193) |
|
$ 82.61 | |||||
| 11 | 2261601 | Door Control Asm |
|
$ 50.22 | |||||
| 12 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 99.78 | ||||
| 13 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 14 | WP2256126 | Reservoir (Replaces: 2217199) |
|
$ 168.85 | |||||
| 15 | W11679940 | Light Bulb (Replaces: 2255743) |
|
Immediately | $ 11.30 | ||||
| 16 | 2209769 | Light Lens |
|
- | |||||
| 17 | 488280 | Screw |
|
- | |||||
| 18 | 2256035 | Bracket, Dual Crisper |
|
$ 62.54 | |||||
| 19 | 2311637 | Wire Harness, Dual Crisper |
|
$ 140.23 |
