SELECT A DIAGRAM

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door Hinge And Trim Parts


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice And Water Cavity


10 - Ice Maker


11 - Machine Compartment


12 - Ref Door


13 - Ref Door Hinge And Trim Parts


14 - Ref Shelving And Drawers


15 - Ref Shelving And Drawers


16 - Ref/fz Controls And Cabinet Parts

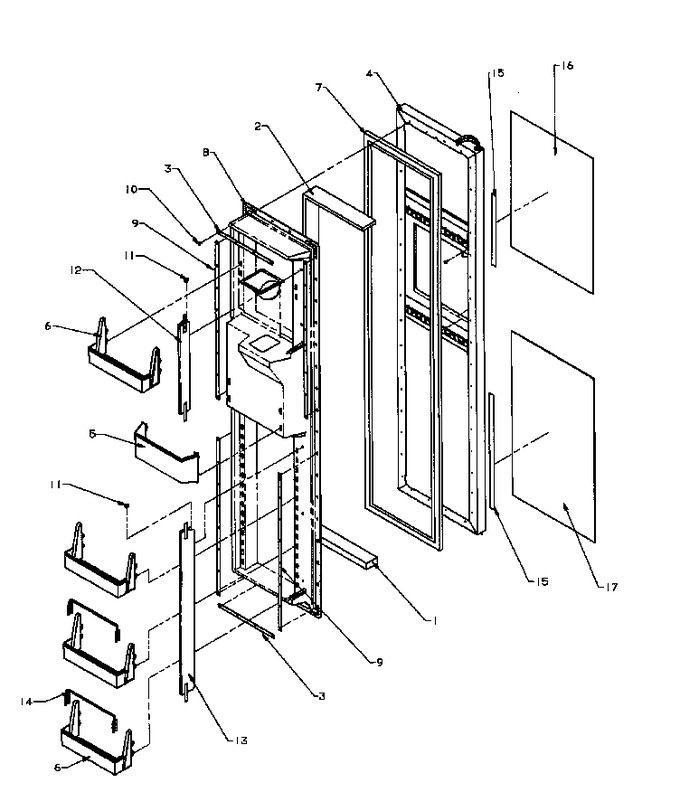

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523563		Insulation Ft. K		Appelez-nous	-
2	B0523562		Insul. By The Ft.		Appelez-nous	-
3	C8982801		Retainer, Door Liner		Appelez-nous	-
4	10547602W		Assy Frz Dr Cfc11		Appelez-nous	-
5	10534704		Shelf, Half Frz		Appelez-nous	-
6	10525504		Shelf, Freezer Door		Appelez-nous	-
7	10359702		Gasket (w Frz Dr)		Appelez-nous	-
8	10533601		Liner, Frz. Dr I/w		Appelez-nous	-
9	D7828601		Retainer, Door Liner		Appelez-nous	-
10	M0219730		Screw				$ 7.65
11	10063102		Clip, Door Dike		Appelez-nous	-
12	10063202		Rem Dike I & W Upper		Appelez-nous	-
13	10063204		Removable Dike I & W		Appelez-nous	-
14	10237602		Retainer, Package		Appelez-nous	-
15	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
16	10096902		Panel Black Glass		Appelez-nous	-
17	10096903		Panel Black Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
