Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7863002 Pad, Handle Inner (wht) Appelez-nous -
1 D7863003 Inner Pad K Appelez-nous -
1 D7863004 Pad, Handle Inner (alm) Appelez-nous -
2 D7863104 Pad, Handle Outer (alm) Appelez-nous -
2 D7863103 Outer Pad K Appelez-nous -
2 D7863102 Pad, Handle Outer (wht) Appelez-nous -
3 D7826603 Handle Appelez-nous -
4 M0215115 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

6 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

8 C8972402 Stop, Door Appelez-nous -
9 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.55

10 D7852105 Upper Trim Frz Dr (l) Appelez-nous -
10 D7852104 Upper Trim Frz Dr Appelez-nous -
10 D7852103 Upper Trim Frz Dr (w) Appelez-nous -
11 D7854003 Trim Center Frz (w) Appelez-nous -
11 D7854004 Trim Center Frz Appelez-nous -
11 D7854005 Trim Center Frz (l) Appelez-nous -
12 D7792704 Trim, Lwr Frz Door Appelez-nous -
12 D7792703 Trim, Lwr Frz Door (w) Appelez-nous -
12 D7792705 Trim, Lwr Frz Door (l) Appelez-nous -
13 D7793002 Retainer, Trim Appelez-nous -
14 D7793102 Retainer, Trim Appelez-nous -
15 C8974102 Trim, Door Appelez-nous -
19 D7837401 Support, Handle Appelez-nous -
20 M0213815 Screw Appelez-nous -
21 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

22 D7790801 Nut, Door Stop Appelez-nous -
23 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

25 10126501 Insulation, Hinge Cover Appelez-nous -
26 C8987901 Foil, Hinge Cover Appelez-nous -
27 10185101 Top Hinge-e Ct Appelez-nous -
28 10126401 Hinge Cover - Chrome Appelez-nous -
29 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

30 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

31 B8389001 Shim, Top Hinge Appelez-nous -
33 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 14.72

34 10030202 Harness, Freezer Dr Appelez-nous -
35 B8387701 Shim, Door Closure Appelez-nous -
36 B8387702 Shim, Door Closure Appelez-nous -
37 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

38 10163601 Bottom Hinge, Frz Appelez-nous -
39 B8386703 Kit,btm Hinge Shim Appelez-nous -
39 B8386702 Kit,btm Hinge Shim Appelez-nous -
39 B8386701 Kit,btm Hinge Shim Appelez-nous -
40 M0233844 Screw, T F Appelez-nous -
41 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

42 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 13.05

43 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

44 A3012532 Tubing Plastic Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

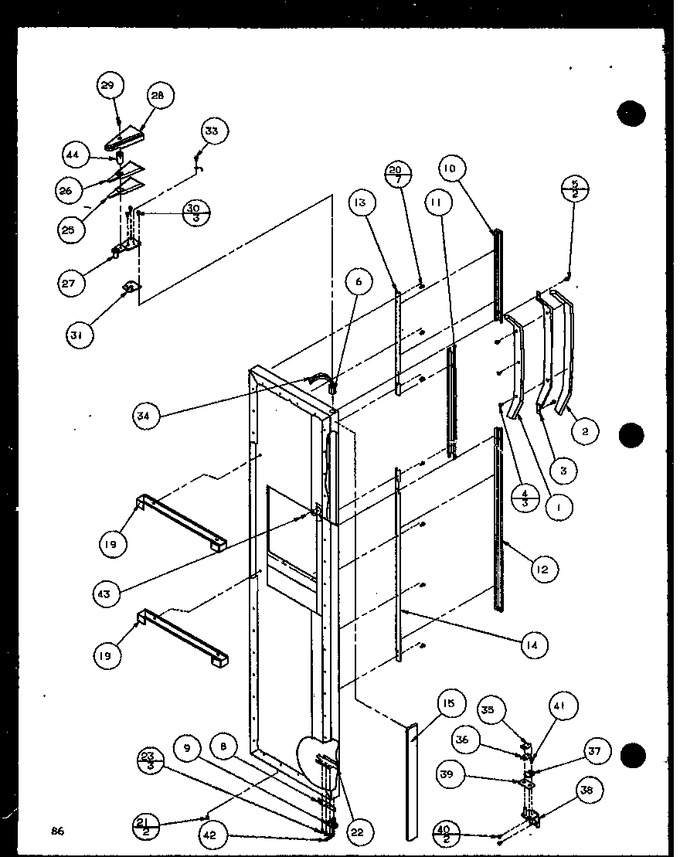

Diagram for SXD22J (BOM: P1116103W)
