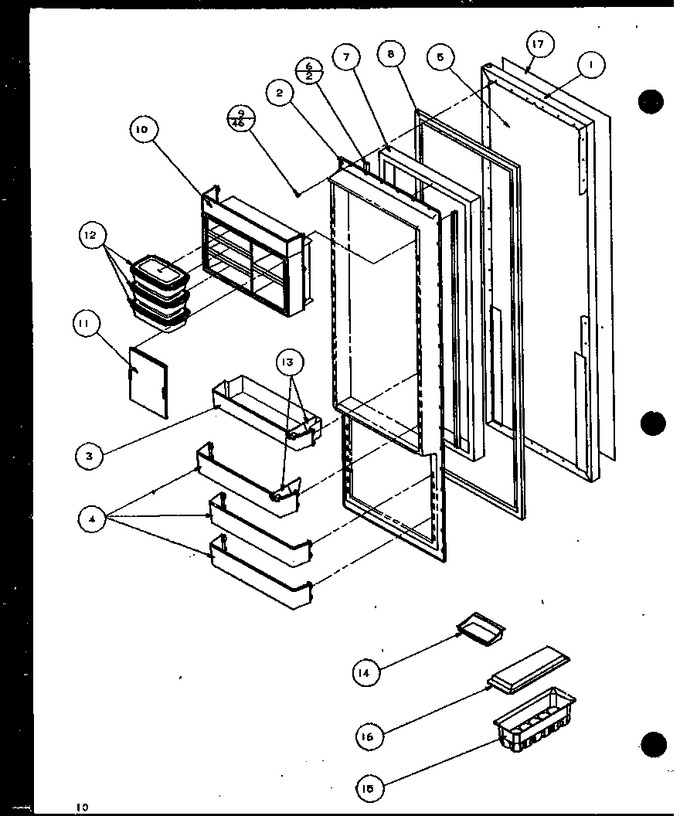

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7834014		Dr Pan, Ref, Gold (		Appelez-nous	-
1	D7834006		Xdoor Ref W		Appelez-nous	-
1	D7834007		Dr Pan, Ref, L (		Appelez-nous	-
2	D7828202		Inner Door, Ref		Appelez-nous	-
3	D7783302		Bucket Ref Door		Appelez-nous	-
4	67003697		Shelf, Ref Door   (Replaces: D7783402)				$ 82.08
5	B0566723		Insulation		Appelez-nous	-
6	C8987104		Seal, Door Dike		Appelez-nous	-
7	B0523562		Insul. By The Ft.		Appelez-nous	-
8	D7870905		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219717		Screw		Appelez-nous	-
10	D7781202		Module-dairy		Appelez-nous	-
11	D7781304		Door Dairy		Appelez-nous	-
12	D7806403		Container Sec. Ser.		Appelez-nous	-
13	D7814601		Snugger, Door Shelf		Appelez-nous	-
14	D3799802		Butter Tray		Appelez-nous	-
15	D7695604		Egg Bucket		Appelez-nous	-
16	D7805901		Cover-bucket		Appelez-nous	-
