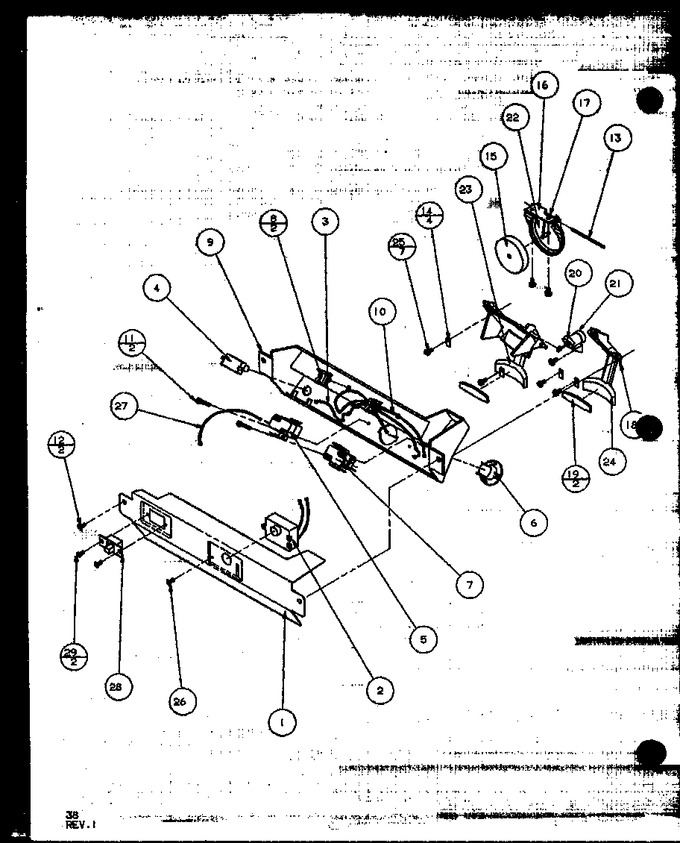

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10131801		Cover-elect Brkt		Appelez-nous	-
2	D7854104		Switch-photosensitive		Appelez-nous	-
3	D7726590		Wire-jumper		Appelez-nous	-
4	10166101		Switch-light Cavity				$ 6.49
5	C8972702		Assy, Limit Switch		Appelez-nous	-
6	10131701		Socket, Light		Appelez-nous	-
7	C8972701		Kit, Limit Switch		Appelez-nous	-
8	B5667304		Wire Clip		Appelez-nous	-
9	10323301		Bracket, Elec Mtg		Appelez-nous	-
10	D7726593		Wire Jumper		Appelez-nous	-
11	M0234008		Screw		Appelez-nous	-
12	M0216517		Screw		Appelez-nous	-
13	A1061501		Pin, Chute Door		Appelez-nous	-
14	A1061601		Retainer, Ice Arm		Appelez-nous	-
15	B8380701		Insulation, Chute Door		Appelez-nous	-
16	B8380801		Brkt-chute Door		Appelez-nous	-
17	B8380901		Spring,chute Door				$ 7.18
18	B8385401		Spring, Return		Appelez-nous	-
19	B8390201		Pad, Actuating		Appelez-nous	-
20	C8972501		Retainer Door Delay		Appelez-nous	-
21	C8973601		Delay, Door		Appelez-nous	-
22	10246601		Kit,chute Dr No.3		Appelez-nous	-
23	D7750303		Arm Ice Actuater		Appelez-nous	-
24	10164901		Arm,water Actuater		Appelez-nous	-
25	M0211116		Screw, Sm		Appelez-nous	-
26	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
27	D7726592		Wire-jumper		Appelez-nous	-
28	10166002		Switch-crushed/cube		Appelez-nous	-
29	M0234003		Screw		Appelez-nous	-
NI	R0156692		Kit,chute Dr No.3		Appelez-nous	-
