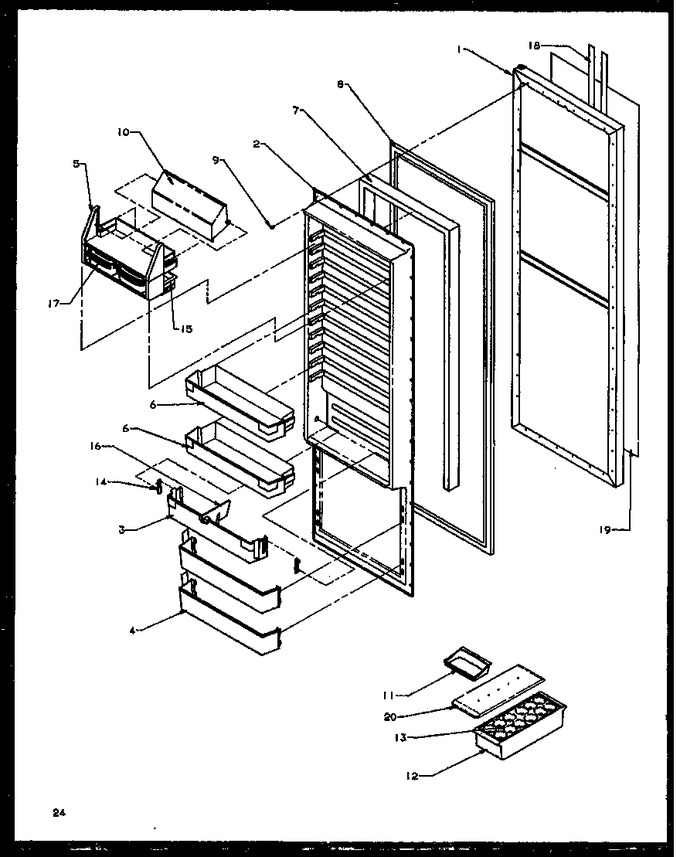

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10547502WQ		Assy Ref Dr Sxs		Appelez-nous	-
2	10521601		Liner, Ref. Door		Appelez-nous	-
3	10520404		Shelf, Chiller		Appelez-nous	-
4	10521804		Shelf, Refrig. Door		Appelez-nous	-
5	10525101		Shelf, Dairy		Appelez-nous	-
6	10520204		Ref Dr Bucket		Appelez-nous	-
7	B0523563		Insulation Ft. K		Appelez-nous	-
8	10359701		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10527310		Door, Dairy		Appelez-nous	-
11	10310901		Tray, Butter		Appelez-nous	-
12	10423120		Bin, Egg		Appelez-nous	-
13	10436504		Tray, Egg		Appelez-nous	-
14	10202001		Clip, Retainer		Appelez-nous	-
15	10524102		Shelf, Sec Serve		Appelez-nous	-
16	10169004		Snugger, Shelf		Appelez-nous	-
17	10185001		Container		Appelez-nous	-
20	10436404		Lid, Utility				$ 60.85
