SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

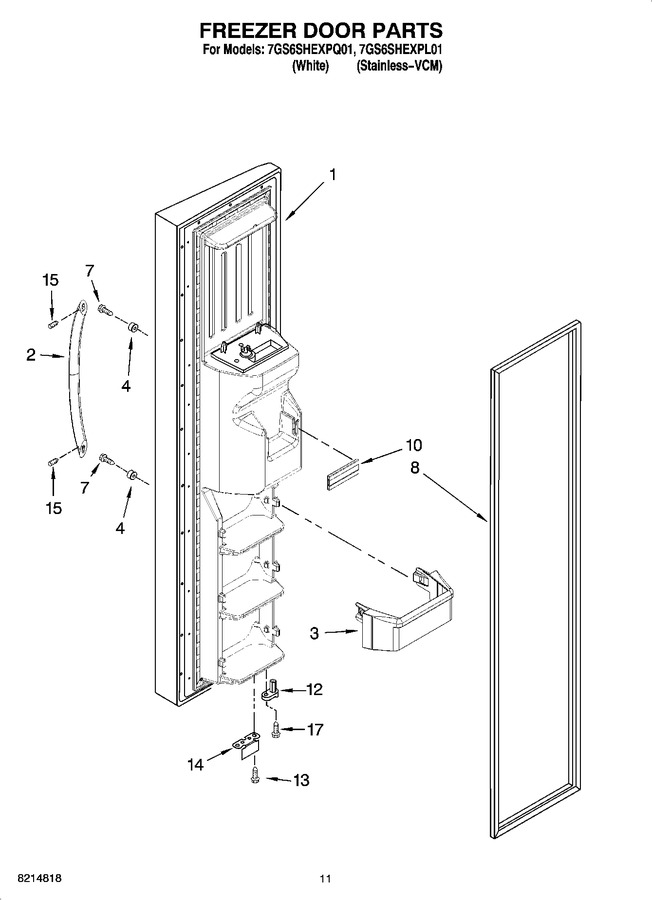

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2317487LB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	2317487W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2303277W		Handle (includes 15) (white)		Appelez-nous	-
2	2303277S		Handle (includes 15) (stainless)		Appelez-nous	-
3	WP2171157		Trivet (3)   (Replaces: 2171157K)				$ 60.67
4	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
7	WP488163		Screw   (Replaces: 488208)				$ 7.54
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082B		Bracket, Door Stop (black)				$ 42.44
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
15	8533918		Screw		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82

    View Diagram in Separate Window       Print Part List
