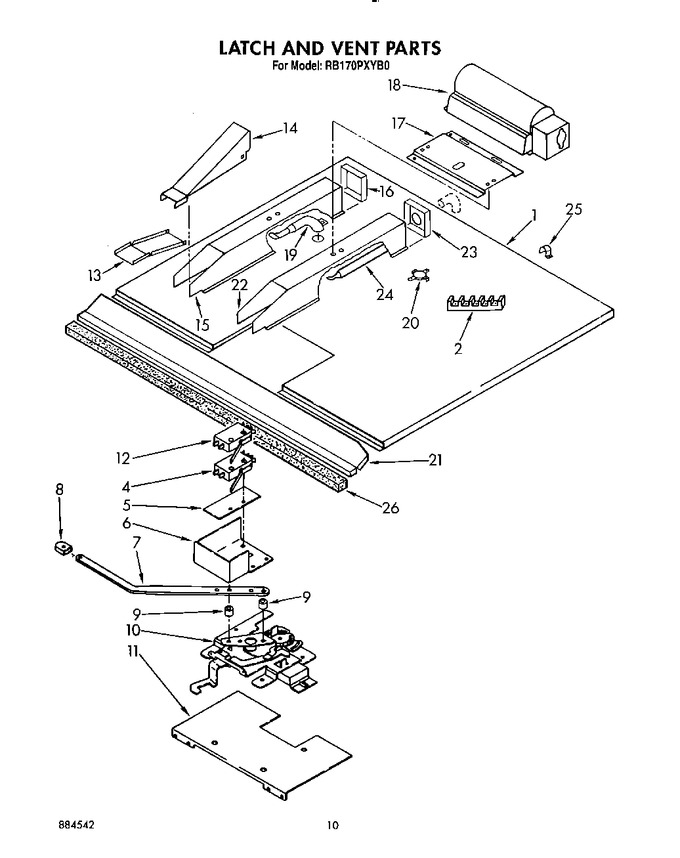

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183747 | Module, Top |
|
- | |||||
| 2 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 30.13 | ||||
| 2 | 308043 | Screw (2) |
|
- | |||||
| 4 | 3178669 | Switch, Latch |
|
- | |||||
| 4 | 3177988 | Screw (2) |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 7 | 3177969 | Handle, Latch |
|
- | |||||
| 8 | 3183294 | Screw |
|
- | |||||
| 8 | 3184039 | Knob, Latch Handle |
|
- | |||||
| 9 | 3184042 | Screw (2) |
|
- | |||||
| 9 | 3184041 | Spacer, Latch Handle |
|
- | |||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 11 | WP3177991 | Screw (3) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 12 | 3178671 | Switch, Latch |
|
- | |||||
| 13 | 3183954 | Nozzel, Vent Bottom (2) |
|
- | |||||
| 14 | 3183955 | Nozzel, Vent Top (2) |
|
- | |||||
| 15 | 3183999 | Box, Vent |
|
- | |||||
| 16 | 3183964 | End, Vent Box |
|
- | |||||
| 16 | WP90767 | Screw (6) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 17 | 3183533 | Bracket, Mounting Fan |
|
- | |||||
| 17 | WP3177991 | Screw (4) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 18 | 3183720 | Blower, Fan |
|
- | |||||
| 19 | 3183791 | Vent, Tube (upper Oven) |
|
- | |||||
| 19 | 3173231 | Screw |
|
- | |||||
| 20 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 20 | 3149652 | Spst Thermostst |
|
- | |||||
| 21 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 21 | 3183799 | Shield, Heat |
|
- | |||||
| 22 | 3183953 | Box, Vent |
|
- | |||||
| 23 | 3183965 | End, Vent Box |
|
- | |||||
| 23 | WP90767 | Screw (6) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 24 | 3183793 | Tube, Vent Lower Oven |
|
- | |||||
| 24 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 25 | 3183532 | Clamp, Tube |
|
- | |||||
| 25 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 26 | 313755 | Seal, Foam |
|
- |
