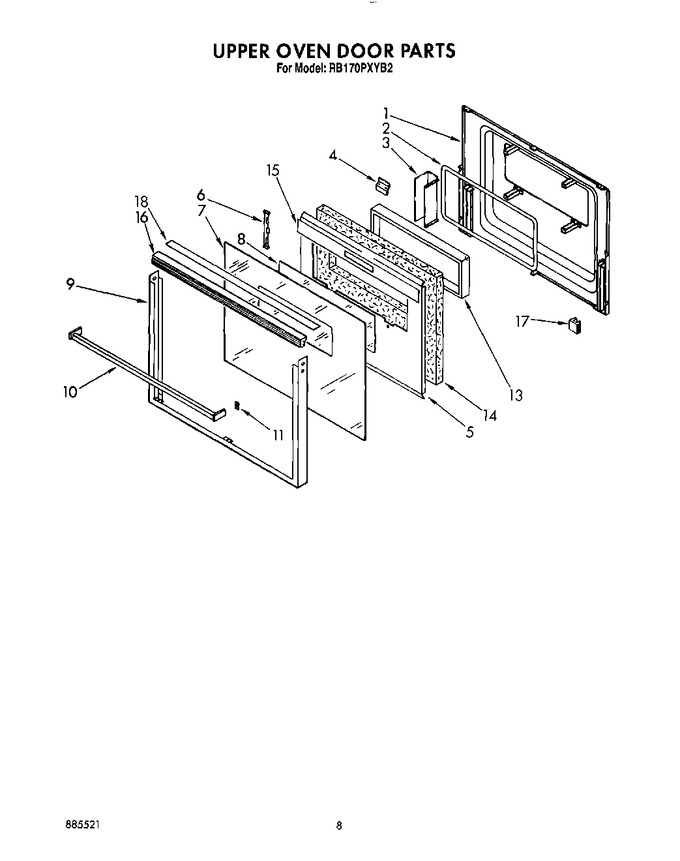

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177597		Liner, Door		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
2	3178584		Seal, Window		Appelez-nous	-
3	3179694		Spacer, Window		Appelez-nous	-
4	3148443		Screw (2)		Appelez-nous	-
4	3177831		Latch, Strike		Appelez-nous	-
5	3148443		Screw (4)		Appelez-nous	-
5	3177719		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
6	4163855		Bracket, Glass Mounting (2)		Appelez-nous	-
7	3179497		Glass, Door (black Model)		Appelez-nous	-
7	3179499		Glass, Door (white Model)		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3180606		Frame, Door		Appelez-nous	-
10	3179482		Handle, Door (black Model)		Appelez-nous	-
10	WP355515		Handle, Door (screw (2))   (Replaces: 355515)				$ 8.48
10	3179484		Handle, Door (white Model)		Appelez-nous	-
11	3148282		Clip, Mounting				$ 8.69
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation, Door		Appelez-nous	-
15	3148443		Screw (2)		Appelez-nous	-
15	3181349		Shield, Door		Appelez-nous	-
16	3179479		Trim, Door (white Model)		Appelez-nous	-
16	3179477		Trim, Door (black Model)		Appelez-nous	-
17	3181701		Bumper, Door Glass		Appelez-nous	-
18	3181365		Cap, Top (white Model)		Appelez-nous	-
