SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice Bucket Auger And Ice Maker Parts


07 - Ice Maker/control Assy


08 - Ice-water Cav/elec Brkt Assy/toe Grille


09 - Machine Compartment


10 - Ref Door And Accessories

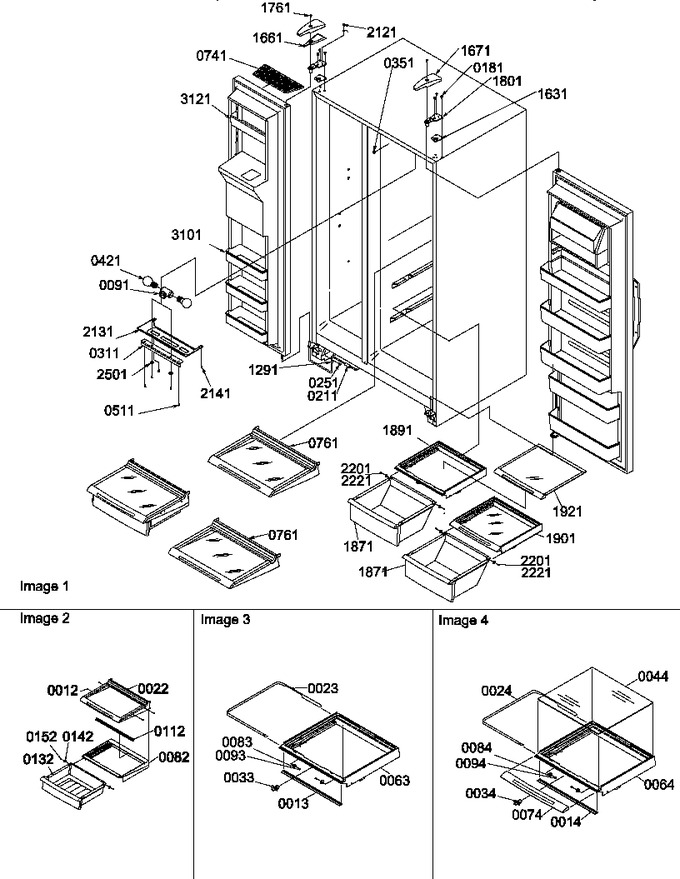

11 - Refri/freez Shelves, Lights, & Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	M0213129		Screw		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
22	10809603		Shelf-full Sta		Appelez-nous	-
23	10882701		Band, Crisper		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
44	Y10370066		Glass, Shelf		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
74	12113003		Trim-crisper Fr		Appelez-nous	-
82	10783803		Frame, Deli		Appelez-nous	-
83	10481001		Roller, Pan				$ 10.99
84	10481001		Roller, Pan				$ 10.99
91	12156201		Socket, Dual Lamp		Appelez-nous	-
93	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
94	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
132	10784201		Pan, Deli		Appelez-nous	-
142	10481001		Roller, Pan				$ 10.99
152	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
211	WP4373559		Union K   (Replaces: B5706901)				$ 81.22
251	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
741	D7750603		Grille, Sump (white)		Appelez-nous	-
761	10809603		Shelf-full Sta		Appelez-nous	-
1291	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
1631	12223003		Shim, Top Hinge		Appelez-nous	-
1661	10863501		Foil, Hng Cov		Appelez-nous	-
1671	10849406		Cover W Hinge		Appelez-nous	-
1761	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.55
1801	12077312		Hinge, Top (e-ct)		Appelez-nous	-
1871	10783201		Pan,crisper		Appelez-nous	-
1891	10882801		Assy, Crisper Frame		Appelez-nous	-
1901	10882808		Assy, Crisp Frame		Appelez-nous	-
1921	10783109		Shelf-top Crisper		Appelez-nous	-
2121	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
2131	10493202		Cover, Ref. Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2201	10481001		Roller, Pan				$ 10.99
2221	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
2501	M0270508		Washer		Appelez-nous	-
3101	10521711		Bucket, Frz Dr		Appelez-nous	-
3121	10525513		Shelf, Frz Dr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
