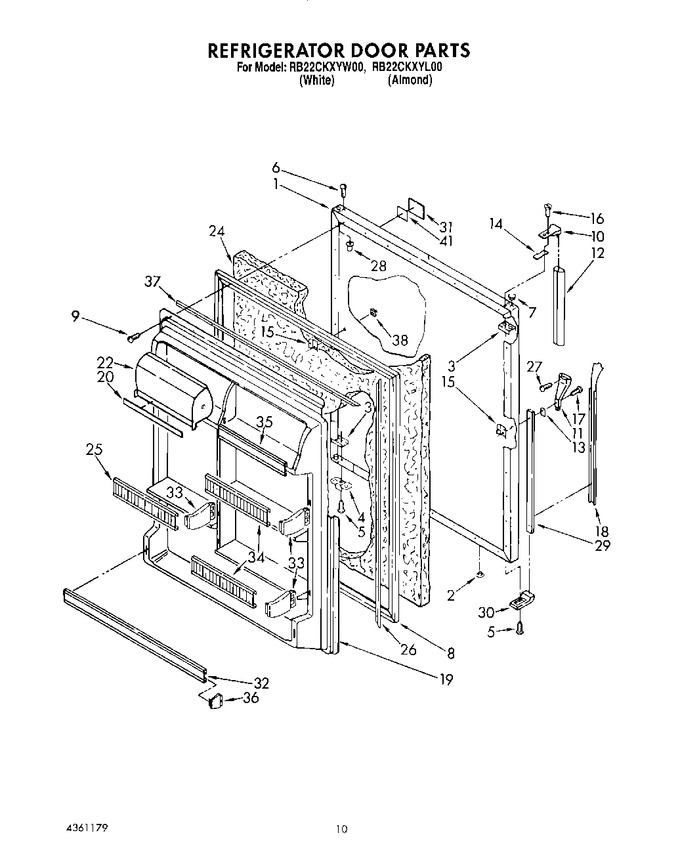

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf, Lit/optional
06 - Unit
07 - Refrigerator Door
08 - Freezer Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1110304 | Panel, Refrigerator Door (also Order Item 24) (white) |
|
- | |||||
| 1 | 1110306 | Panel, Refrigerator Door (also Order Item 24) (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 1115910 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2147021 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | 944157 | Handle End |
|
- | |||||
| 11 | 1109189 | Handle End, Side |
|
- | |||||
| 12 | 1109057 | Handle, Center |
|
- | |||||
| 13 | 935075 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 18 | 1119666 | Insert, Handle |
|
- | |||||
| 19 | 2156657 | Interior Door Panel |
|
- | |||||
| 20 | 1122750 | Trim, Door Compartment |
|
- | |||||
| 22 | 2152474 | Compartment Door, |
|
- | |||||
| 24 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 25 | 2152471 | Trim, Door Shelf |
|
- | |||||
| 26 | 986008 | Gasket Retainer, Side (2) |
|
- | |||||
| 27 | 489022 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 28 | 509929 | Cap, Hinge Sleeve (4) |
|
- | |||||
| 29 | 935873 | Retainer, Insert |
|
- | |||||
| 30 | 1105804 | Endcap, Insert Retainer |
|
- | |||||
| 31 | 2160005 | Nameplate |
|
- | |||||
| 32 | 2152490 | Trim, Door Shelf |
|
- | |||||
| 33 | 4388286 | End Cap, Trim (Replaces: 1124877) |
|
$ 16.10 | |||||
| 34 | 2152472 | Trim, Door Shelf |
|
- | |||||
| 35 | 2152473 | Trim, Door Shelf |
|
- | |||||
| 36 | 1115364 | End Cap, Trim |
|
- | |||||
| 37 | 836118 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 38 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 38 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 41 | 991259 | Tape Strip |
|
- |
