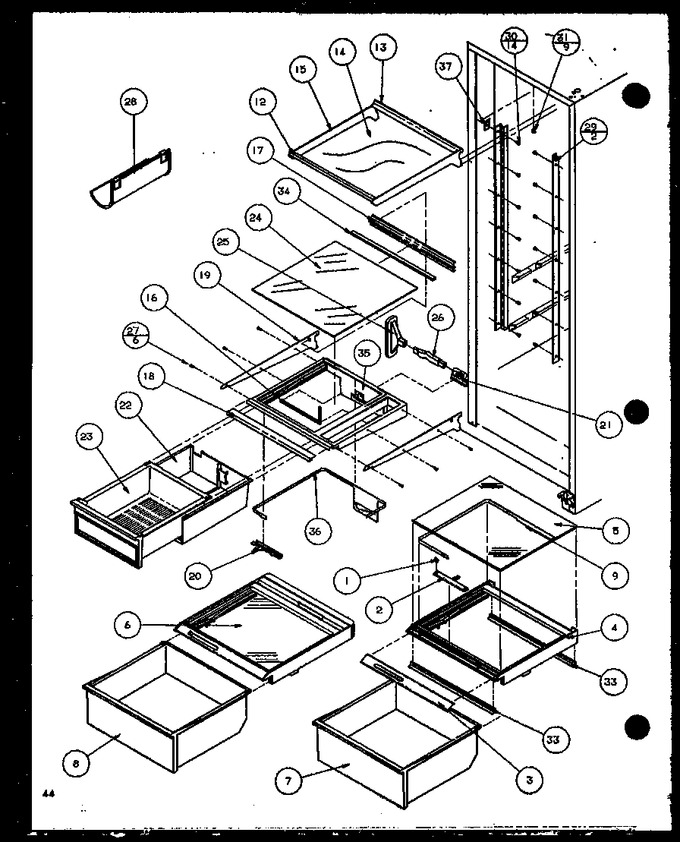

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038401		Knob, Crisper Control		Appelez-nous	-
2	D7860602		Slide Crisper Cont. A		Appelez-nous	-
3	D7616629		Trim		Appelez-nous	-
4	D7853205		Frame Crisper		Appelez-nous	-
4	D7853207		Frame,crisper		Appelez-nous	-
5	D7421275		Glass Crisper Top		Appelez-nous	-
6	D7421271		Glass Crisper Top		Appelez-nous	-
7	D7782122		Pan, Crisper		Appelez-nous	-
8	D7782123		Pan - Crisper		Appelez-nous	-
9	D7859603		Band Crisper Control		Appelez-nous	-
12	C8913513		Trim, Front Shelf		Appelez-nous	-
13	C8913606		Trim, Glass Shelf Rear		Appelez-nous	-
14	D7421241		Glass Shelf		Appelez-nous	-
15	D7871009		Frame-cantilever Shelf		Appelez-nous	-
16	A3263905		Gasket-per Ft		Appelez-nous	-
17	C8990404		Trim-m.k., Top, Rear		Appelez-nous	-
18	C8913531		Trim, Front Shelf		Appelez-nous	-
19	D7862924		Blank Side Rail		Appelez-nous	-
19	D7862925		Blank Side Rail (silver)		Appelez-nous	-
20	D7859401		Slide-mk Control		Appelez-nous	-
21	D7869102		Ext. Air Duct		Appelez-nous	-
22	D7698111		Sleeve M.k.		Appelez-nous	-
23	D7698324		Pan-meat		Appelez-nous	-
24	D7421266		Glass Shelf Mk		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	D7547611		Rack-bottle		Appelez-nous	-
29	D7789807		Ladder Cantilever		Appelez-nous	-
30	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
31	M0580007		Grommet, Screw		Appelez-nous	-
33	D7718403		Seal, Crisper Front		Appelez-nous	-
33	D7718404		Seal, Crisper Rear		Appelez-nous	-
34	10043102		Ext. Rear Glass		Appelez-nous	-
35	D7857002		Frame, M.k.		Appelez-nous	-
36	D7859503		Band M.k. Control		Appelez-nous	-
37	C8992301		Bracket		Appelez-nous	-
NI	R0179118		Glass Crisper Top Assy		Appelez-nous	-
NI	R0179119		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871806		Glass Shelf Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
