SELECT A DIAGRAM

02 - Control Panel


03 - Oven Cabinet


04 - Internal Oven, Optional

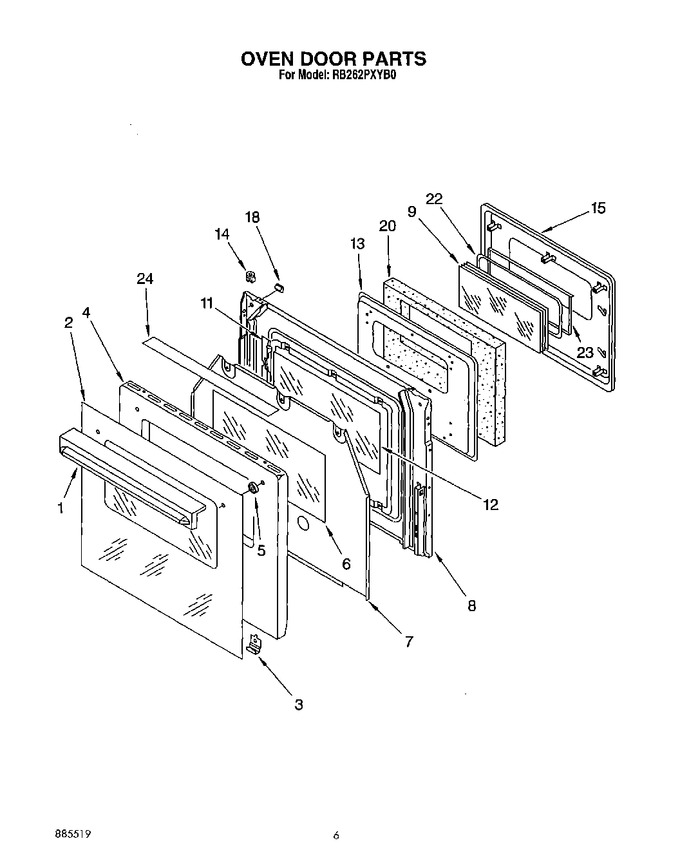

05 - Oven Door, Literature


06 - Burner Box And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	879430		Handle, Door (washer)		Appelez-nous	-
1	879453		Handle, Door (nut)		Appelez-nous	-
1	879376		Handle, Door (black Model)		Appelez-nous	-
1	879377		Handle, Door (white Model)		Appelez-nous	-
1	879398		Handle, Door (screw)		Appelez-nous	-
2	879378		Glass, Outer (black Model)		Appelez-nous	-
2	879379		Glass, Outer (white Model)		Appelez-nous	-
3	879381		Clip, Glass Retainer (white Model)		Appelez-nous	-
3	879396		Clip, Glass Retainer (screw)		Appelez-nous	-
3	879380		Clip, Glass Retainer (black Model)		Appelez-nous	-
4	879383		Panel, Door (white Model)		Appelez-nous	-
4	879382		Panel, Door (black Model)		Appelez-nous	-
4	879396		Panel, Door (screw)		Appelez-nous	-
5	879384		Spacer, Glass		Appelez-nous	-
6	879385		Glass, Clear		Appelez-nous	-
7	879387		Screw		Appelez-nous	-
7	879386		Baffle		Appelez-nous	-
8	879389		Screw		Appelez-nous	-
8	879388		Lining		Appelez-nous	-
9	879390		Window Pak		Appelez-nous	-
11	879333		Screw		Appelez-nous	-
11	879391		Retainer		Appelez-nous	-
12	879392		Glass, Inner		Appelez-nous	-
13	879393		Pad, Inner		Appelez-nous	-
14	879394		Nut, Snap Panel Screw		Appelez-nous	-
15	879395		Pad, Door		Appelez-nous	-
18	879397		Bumper		Appelez-nous	-
20	879399		Insulation		Appelez-nous	-
22	879400		Gasket		Appelez-nous	-
23	879401		Retainer, Gasket		Appelez-nous	-
24	879370		Tape, Foil		Appelez-nous	-
	LIT885519		Repair Parts List		Appelez-nous	-
	LIT879455		Use & Care Guide		Appelez-nous	-
	LIT879454		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
