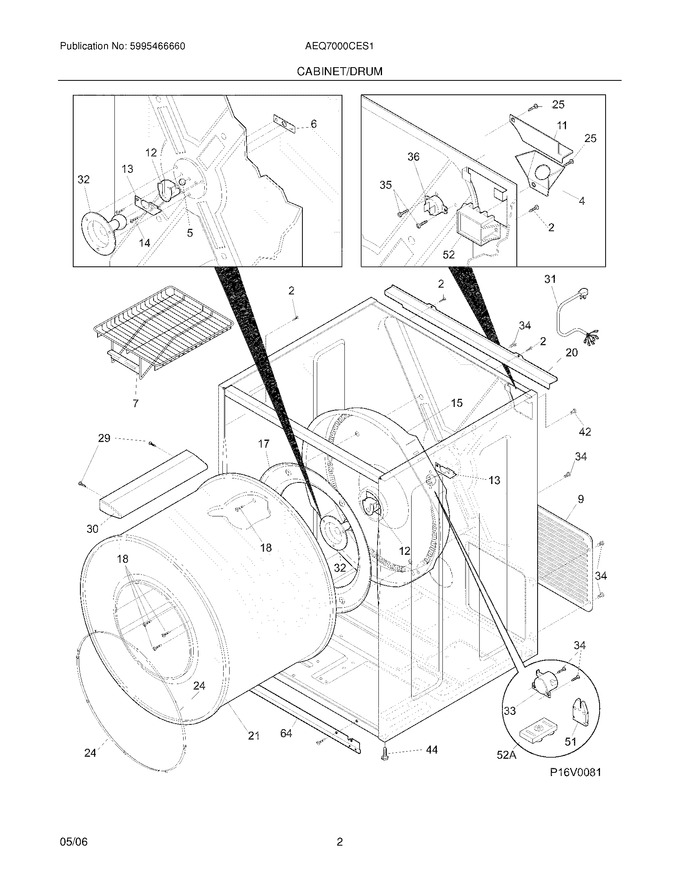

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
4	131785200		Bracket,elec Power Cord ,knock Out				$ 30.08
5	5303281019		Ball,grounding				$ 18.11
6	5303281020		Clip,ball ,steel ,flat Nut				$ 18.90
7	134121200		Rack,drying		Appelez-nous	-
9	131793200		Panel,service Access ,rear		Appelez-nous	-
11	5303211428		Cover, Terminal Block				$ 44.15
12	131825900		Bearing-drum Support			Immediately	$ 12.19
13	131724301		Bracket,bearing Support   (Replaces: 131724300)			Immediately	$ 28.51
14	131205400		Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive				$ 14.18
17	3204254		Baffle,heater Shield				$ 143.33
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
20	134166500		Bracket,top Panel Mtg. ,rear				$ 49.51
21	134122552		Drum,dryer ,stainless Steel ,service Kit				$ 398.53
24	137513300		Glide-drum   (Replaces: 131963900)			Immediately	$ 40.75
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
29	131382300		Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special			Immediately	$ 14.96
30	5304405283		Vane-straight-gray				$ 57.38
32	131777700		Shaft,drum Support ,ballhitch			Immediately	$ 79.85
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
35	131892100		Screw,6-20b X 0.230		Appelez-nous	-
42	134154100		Screw,hex Washer Head ,10-32 X 0.375 ,ground				$ 14.96
44	134344900		Leveling Leg,screw				$ 14.23
51	131472100		Insulator,heater Housing				$ 66.68
64	134360100		Bracket,svce Panel Mtg.		Appelez-nous	-
F15	131553900		Heater Assy,w/housing/felt			Immediately	$ 107.68
F31	5304505408		Power Cord,electric Svce ,4-wire Canada   (Replaces: 134502300)				$ 216.24
F33	3204267		Thermostat-safety			Immediately	$ 59.43
F36	134120900		Thermal Limiter			Immediately	$ 14.68
F52	134101400		Terminal Block,main			Immediately	$ 62.21
F52A	3202786		Terminal Block,heater Housing				$ 71.66
NI	134608000		Stacking Kit,dryer/washer		Appelez-nous	-
NI	5303307893		Lubricant, High Temp			Immediately	$ 37.80
NI	5303297892		Clamp,strain Relief ,power Cord				$ 32.34
NI	134394200		Wiring Harness,main				$ 170.94
NI	5303281153		Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32			Immediately	$ 51.82

    View Diagram in Separate Window       Print Part List
