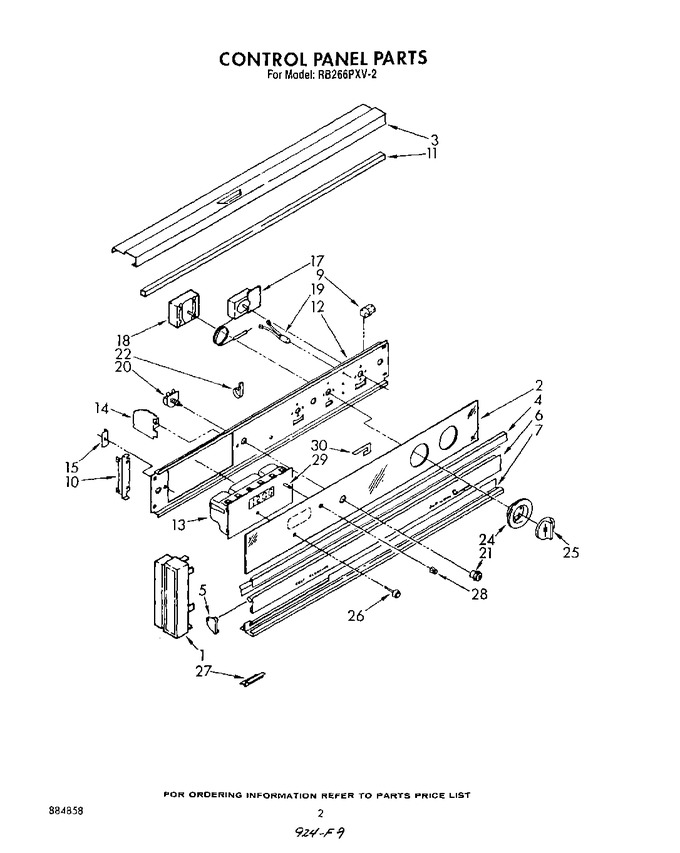

02 - Control Panel , Lit/optional
03 - Oven
04 - Oven Door
05 - Wiring Harness
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148621 | End Cap. L.h. |
|
- | |||||
| 1 | WP488627 | Screw (4) (Replaces: 342055) |
|
$ 8.11 | |||||
| 1 | 3148622 | End Cap (r.h.) |
|
- | |||||
| 2 | 3149179 | Control Panel, Glass |
|
- | |||||
| 3 | 3148624 | Rail, Top |
|
- | |||||
| 3 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 8.11 | |||||
| 4 | 3149349 | Trim, Center |
|
- | |||||
| 5 | 3148471 | End Trim, Vent Door R.h. |
|
- | |||||
| 5 | 3148472 | End Trim, Vent Door L.h. |
|
- | |||||
| 6 | 342043 | Screw (2) |
|
- | |||||
| 6 | 3149603 | Door, Vent |
|
- | |||||
| 7 | 342043 | Screw (4) |
|
- | |||||
| 7 | 3148618 | Trim, Bottom |
|
- | |||||
| 9 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 10 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 8.28 | ||||
| 10 | 3148635 | Bracket, Control Panel (2) |
|
- | |||||
| 11 | 311263 | Seal, Backguard |
|
- | |||||
| 12 | 330500 | Bracket, Control |
|
- | |||||
| 13 | WP488729 | Screw, 8a X 3/8 (2) 8 X 3/8 (2) (Replaces: 3148107) |
|
Immediately | $ 8.28 | ||||
| 13 | 3149807 | Timer, Digital |
|
- | |||||
| 14 | 314129 | Shield, Timer |
|
- | |||||
| 15 | 313864 | Bracket, Timer |
|
- | |||||
| 17 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 17 | 3148934 | Thermostat, Oven |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 18 | 310006 | Selector Switch |
|
- | |||||
| 19 | 3148720 | Indicator, Light (locked) |
|
- | |||||
| 19 | 311802 | Indicator, Light (oven On) |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (4) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 20 | 3148465 | Switch, Oven Light |
|
- | |||||
| 21 | 3149170 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 11.76 | |||||
| 22 | 98520 | Screw, 8a X 5/16 |
|
- | |||||
| 24 | WP311068 | Escutcheon, Selector Switch (Replaces: 3149174) |
|
$ 58.02 | |||||
| 24 | 3149172 | Escutcheon, Thermostat |
|
- | |||||
| 24 | 254225 | Escutcheon (screw, 8bt X 1/4 (2)) |
|
- | |||||
| 25 | 3150372 | Knob, Control (2) |
|
- | |||||
| 26 | 3149177 | Set, Button (4) |
|
- | |||||
| 27 | 313865 | Bracket, Control (2) |
|
- | |||||
| 28 | 3149176 | Knob, Bit Generator |
|
- | |||||
| 29 | 3149320 | Shaft, Bit Generator |
|
- | |||||
| 30 | 832985 | Rack, Bi-level |
|
- | |||||
| 30 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 30 | WP261869 | Citrine White (microwave Liner) (Replaces: 261869) |
|
$ 27.83 | |||||
| 30 | 242860 | Blue Gray |
|
- | |||||
| 30 | 242757 | Paint, Touch-up 1 Oz. (oven Liner) (light Gray) |
|
- | |||||
| 30 | 8212471 | Bronzetone (Replaces: 242756) |
|
Immediately | $ 87.22 | ||||
| 30 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | ||||
| 30 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 30 | 261881 | Rotisserie Kit (rck 79) |
|
- | |||||
| 30 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 30 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 30 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 30 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 30 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 30 | 3149142 | Shield, Air |
|
- | |||||
| 30 | 98520 | Screw |
|
- | |||||
| 30 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 30 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 30 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 30 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 30 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 30 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 30 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 30 | 242826 | 18 Ga. 80~ Rating (white) |
|
- | |||||
| 30 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 30 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 30 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 30 | 242832 | 18 Ga. 80~ Rating (yellow 12 Ga. 150~c Rating) |
|
- | |||||
| 30 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 30 | 242829 | 18 Ga. 80~ Rating (red) |
|
- | |||||
| 30 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 30 | 261890 | Harvest Gold |
|
- | |||||
| 30 | 285365 | Toast |
|
- | |||||
| 30 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 30 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 30 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | |||||
| 30 | 350942 | Primer |
|
$ 94.14 | |||||
| 30 | 350941 | Leveler (primer) |
|
- | |||||
| 30 | 261900 | Citrine White 5 Oz. (m/w Liner) |
|
$ 59.89 | |||||
| 30 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 30 | 978883 | Almond |
|
- | |||||
| 30 | 261891 | Harvest Gold |
|
- | |||||
| 30 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 30 | 285368 | Platinum |
|
- | |||||
| 30 | 786032 | Ebony (microwave) |
|
- | |||||
| 30 | 978849 | Cleaner, (8oz.) Black Glass |
|
$ 15.82 | |||||
| 30 | 261582 | Grease |
|
- | |||||
| 30 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 51.81 | |||||
| 30 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 30 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 30 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- |
