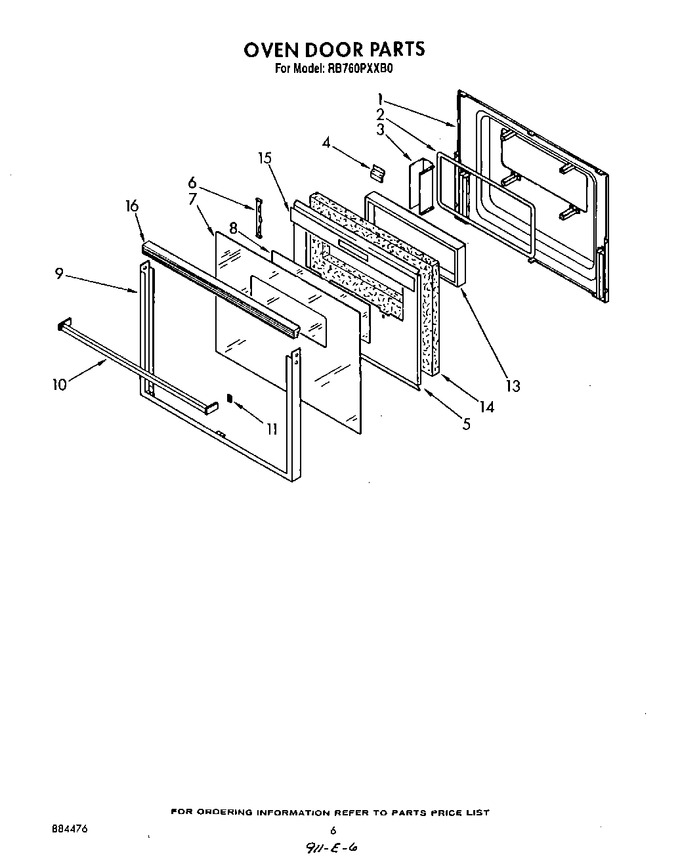

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177599 Liner, Door Appelez-nous -
2 3178584 Gasket, Window Appelez-nous -
3 3179693 Spacer, Window Appelez-nous -
4 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

4 3177831 Latch, Strike Appelez-nous -
5 3177718 Insulation, Retainer Appelez-nous -
5 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

6 4163855 Bracket, Glass Mounting (2) Appelez-nous -
6 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

7 3179498 Glass, Door Appelez-nous -
8 4164243 Glass, Reflective Appelez-nous -
9 3180607 Frame, Door Appelez-nous -
10 3179481 Handle, Door Appelez-nous -
10 WP355515 Screw (2)   (Replaces: 355515) Special Order $ 8.48

11 3148282 Clip, Mounting Special Order $ 8.69

11 3180967 Screw (3) Appelez-nous -
12 4167975 Retainer, Glass Appelez-nous -
12 3178001 Screw (12) Appelez-nous -
13 4164235 Window Package Appelez-nous -
14 3180094 Insulation, Door Appelez-nous -
14 4168863 Screw (6) Appelez-nous -
15 3181348 Shield, Door Appelez-nous -
15 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

16 3179476 Trim, Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
