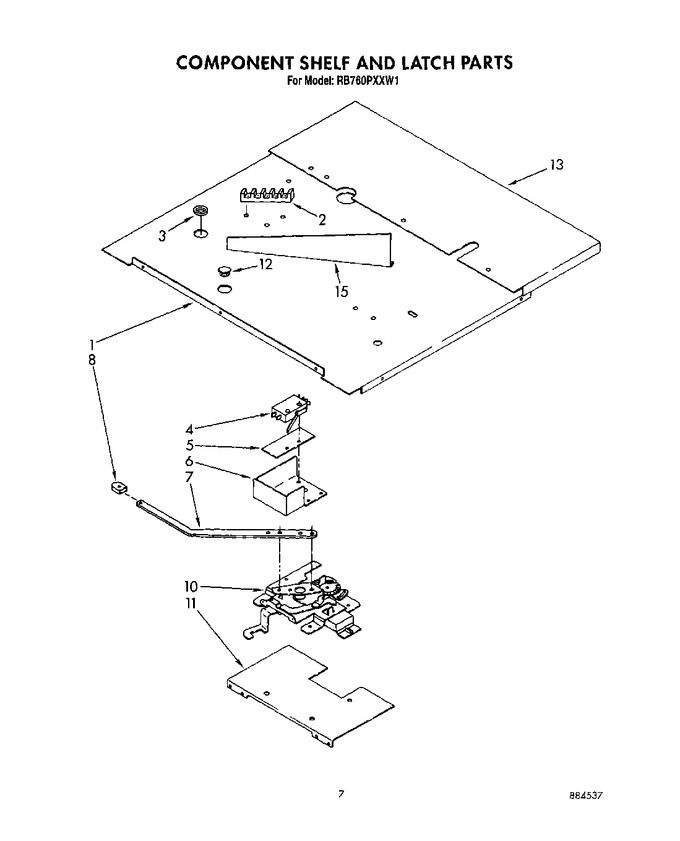

06 - Component Shelf And Latch
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3178089 | Shelf, Component |
|
- | |||||
| 1 | WP90767 | Screw (7) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 2 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 30.13 | ||||
| 2 | W10841059 | Screw (2) (Replaces: 98445) |
|
- | |||||
| 3 | 4159035 | Bushing |
|
- | |||||
| 4 | 3178668 | Switch, Latch |
|
- | |||||
| 4 | 98106 | Screw (2) |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 254225 | Screw (2) |
|
- | |||||
| 6 | WP3177991 | Screw (1) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 7 | 4159187 | Screw (2) |
|
- | |||||
| 7 | 3180409 | Handle, Latch |
|
- | |||||
| 8 | 3179116 | Screw (2) |
|
- | |||||
| 8 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 8 | 3183294 | Screw |
|
- | |||||
| 8 | 3183293 | Knob, Latch Handle |
|
- | |||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 10 | WP3177991 | Screw (3) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 12 | 3179777 | Plug, Button |
|
- | |||||
| 13 | WP3177991 | Screw (8) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 13 | 3178132 | Extension, Shelf |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 15 | WP90767 | Screw (3) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 15 | 3180693 | Baffle, Air |
|
- |
