SELECT A DIAGRAM

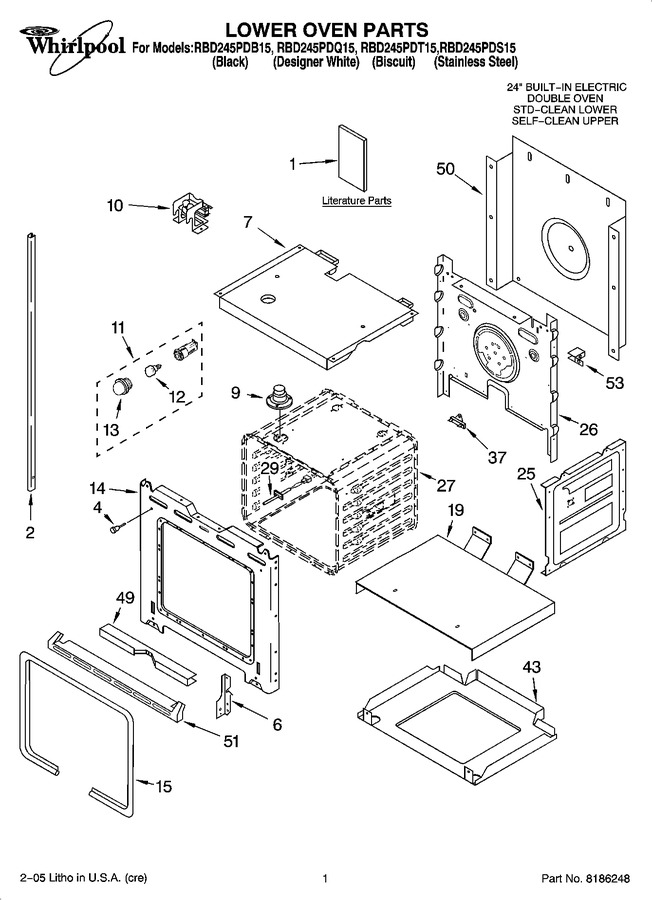

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300656		Installation Instructions		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	8300772		Use & Care Guide (oven)		Appelez-nous	-
1	8302068		Tech Sheet		Appelez-nous	-
2	4452122		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450851		Trim, Side (rh White)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (lh White)		Appelez-nous	-
2	4452123		Trim, Side (lh Biscuit Screw)		Appelez-nous	-
2	WP8281236		Trim, Side (black Model)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (white)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
6	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
6	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
7	4455863		Top Chassis				$ 117.60
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4451664		Fan & Bracket Assy		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
11	4452368		Oven Light Assy		Appelez-nous	-
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	4452165		Lens, Light		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	9760754		Frame, Front   (Replaces: 4455610)				$ 132.66
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W10203263		Gasket, Door   (Replaces: 4450491)		Appelez-nous	-
19	4451476		Support, Insulation		Appelez-nous	-
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452232		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450525		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448473		Trim, Bottom (black Model)		Appelez-nous	-
51	4448474		Trim, Bottom (white Model)		Appelez-nous	-
51	8300528		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64

    View Diagram in Separate Window       Print Part List
