01 - Lower Oven
02 - Upper Oven
03 - Lower Oven Door
04 - Upper Oven Door
05 - Internal Oven
06 - Control Panel, Literature
07 - Top Venting
SELECT A DIAGRAM
New Model Search:

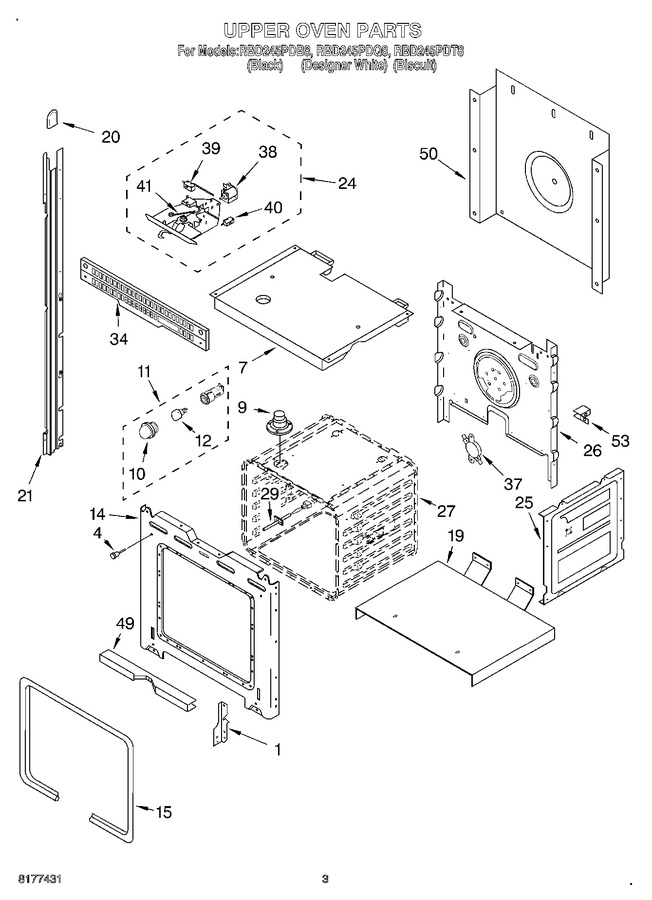

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4454664 | Reciever, Hinge (left Hand) |
|
- | |||||
| 1 | 4454665 | Reciever, Hinge (right Hand) |
|
- | |||||
| 4 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 7 | 4455863 | Top, Chassis (Replaces: 4455188) |
|
$ 117.60 | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 14 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 14 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 14 | 9760754 | Frame, Front (Replaces: 4451738) |
|
$ 132.66 | |||||
| 15 | WP4455380 | Gasket, Door (Replaces: 4449370) |
|
Immediately | $ 174.79 | ||||
| 19 | 4451476 | Support, Insulation |
|
- | |||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 20 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 21 | 814373 | Rail, Side (right) (Replaces: 4450581) |
|
$ 237.85 | |||||
| 21 | 814374 | Rail, Side (left) (Replaces: 4450582) |
|
$ 238.23 | |||||
| 21 | WP4448444 | Rail, Side (grommet) (Replaces: 4448444) |
|
$ 7.85 | |||||
| 21 | WP4449154 | Rail, Side (screw) (Replaces: 4449154) |
|
$ 8.16 | |||||
| 24 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 24 | 4451896 | Latch Assembly |
|
$ 163.41 | |||||
| 25 | 4454691 | Side, Chassis (r.h. & L.h.) |
|
- | |||||
| 25 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 26 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 26 | 4452232 | Back, Chassis |
|
- | |||||
| 29 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 29 | 4451665 | Sensor |
|
$ 107.99 | |||||
| 34 | W10358914 | Vent, Center (Replaces: 4452265) |
|
- | |||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 4451442) |
|
Immediately | $ 55.44 | ||||
| 37 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 38 | 4452224 | Solenoid |
|
- | |||||
| 39 | 4451422 | Switch, Micro N.c. |
|
- | |||||
| 40 | 4451426 | Switch, Micro |
|
- | |||||
| 41 | 4451537 | Spring, Latch |
|
- | |||||
| 49 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 53 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 53 | WP4450363 | Insulation, Back (Replaces: 4450363) |
|
$ 189.22 | |||||
| 53 | 4449845 | Bracket-support |
|
- | |||||
| 53 | WP4449314 | Insulation, Wrap (Replaces: 4449314) |
|
$ 189.64 |
