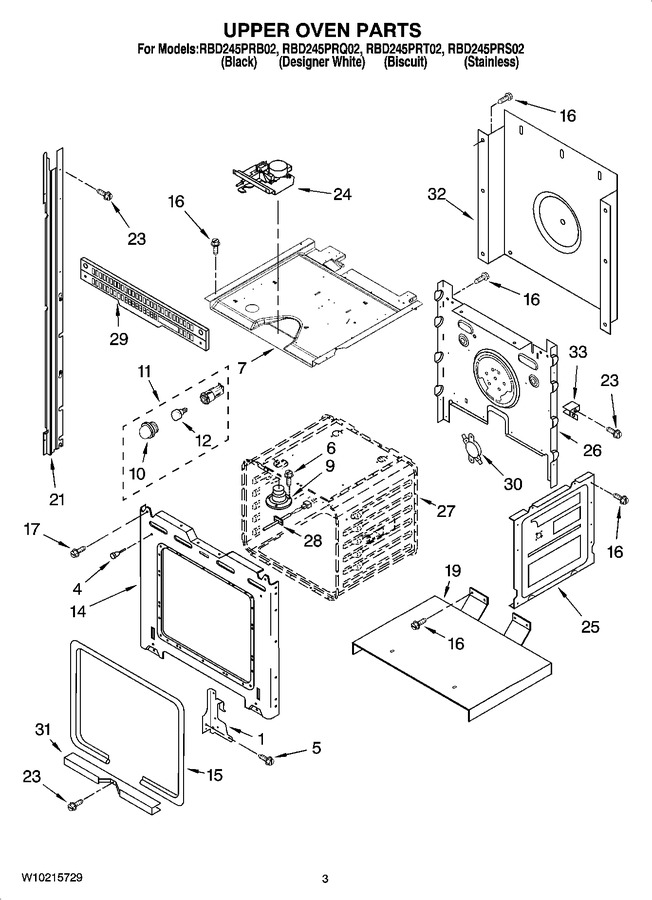

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4455605		Receiver, Hinge (left Hand)   (Replaces: 4455605)			Immediately	$ 127.70
1	WP4455606		Receiver, Hinge (right Hand)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper, Door				$ 7.41
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
7	4455863		Top Chassis				$ 117.60
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	9760754		Frame, Front				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451476		Support, Insulation		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP8302793		Rail, Side (right)   (Replaces: 8302793)				$ 154.74
21	8302794		Rail, Side (left)				$ 164.19
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP9760889		Assembly, Latch   (Replaces: 9760888)			Immediately	$ 345.08
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
28	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
29	W10358914		Vent, Center   (Replaces: 4452265)		Appelez-nous	-
30	WP9759243		Thermostat   (Replaces: 9759243)			Immediately	$ 55.44
31	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
32	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
33	4449845		Support, Bracket		Appelez-nous	-
	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22

    View Diagram in Separate Window       Print Part List
