Diagram for 06 - Control Panel Parts
06 - Control Panel Parts

Diagram for 07 - Top Venting Parts, Optional Parts (not Included)
07 - Top Venting Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8302840 Assembly, Control Panel   (Replaces: 8302840) Special Order $ 285.09

2 8304272 Membrane Switch Appelez-nous -
3 8303883 Microcomputer Appelez-nous -
4 W10222958 Backer, Control Panel   (Replaces: W10153088) Appelez-nous -
5 8301848 Board, Motorized Latch Special Order $ 184.23


    View Diagram in Separate Window     Print Icon   Print Part List

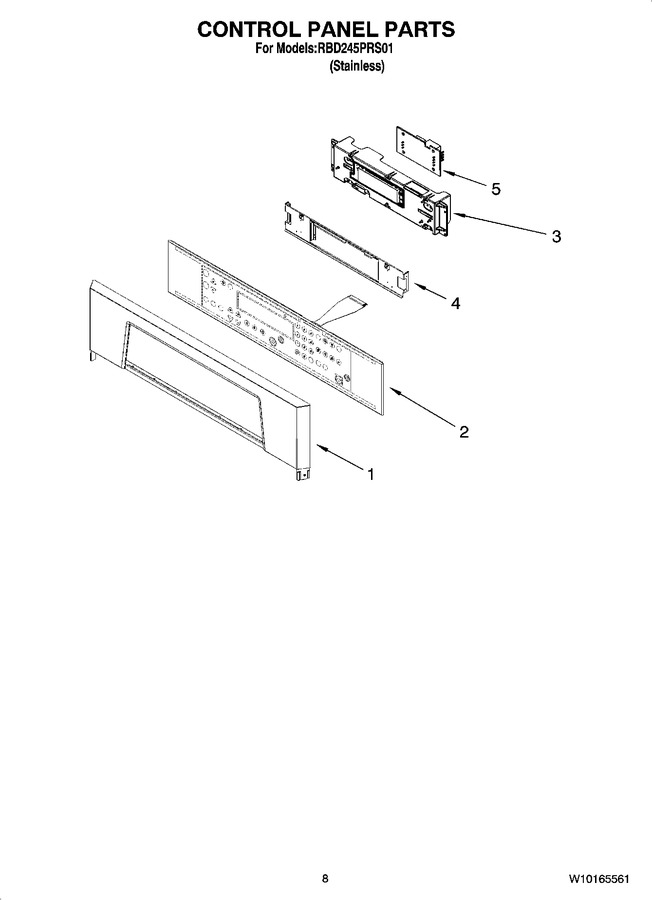

Diagram for RBD245PRS01
