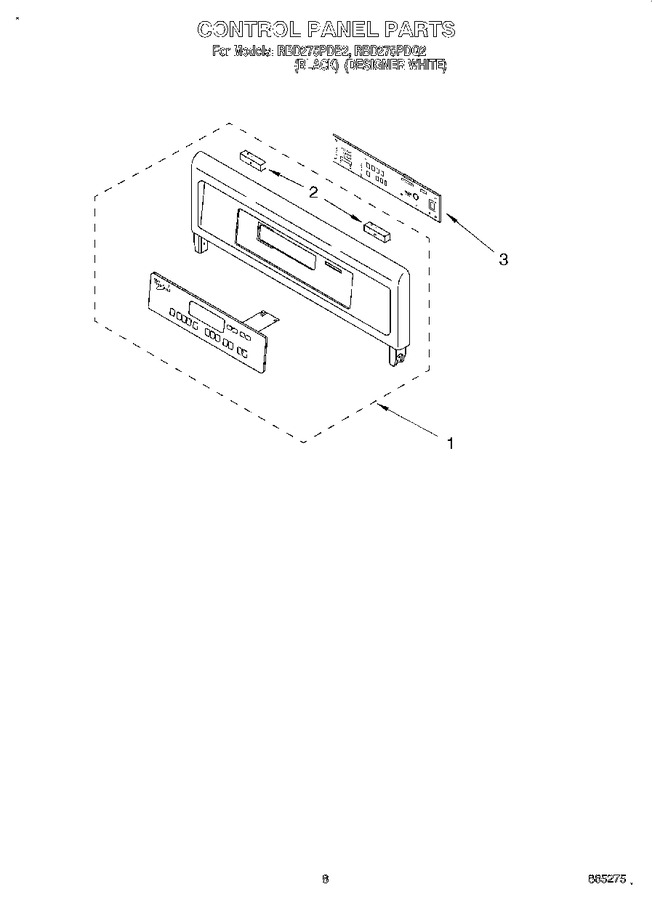

06 - Control Panel, Literature
07 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451304 | Control Panel Assy. W/membrane, Switch (black Model) |
|
- | |||||
| 1 | 4451305 | Control Panel Assy. W/membrane, Switch (white Model) |
|
- | |||||
| 2 | 4449899 | Screw |
|
- | |||||
| 2 | 4451033 | Gasket, Control Panel |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 3 | 4448876 | Microcomputer |
|
- | |||||
| LIT4450568 | Use & Care Guide (oven) |
|
- | ||||||
| LIT4450410 | Installation Instructions |
|
- | ||||||
| LIT4454767 | Tech Sheet (oven) |
|
- |
