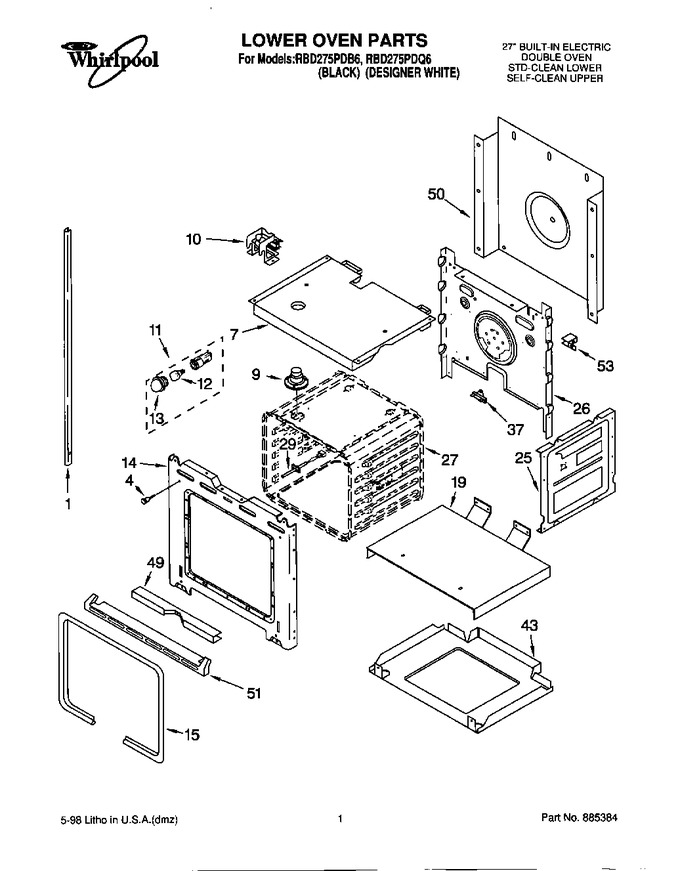

SELECT A DIAGRAM

01 - Lower Oven


02 - Upper Oven


03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4449041		Trim, Side (screw White)				$ 5.27
1	4450850		Trim, Side (rh Black)		Appelez-nous	-
1	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
1	4450853		Trim, Side (lh Black)		Appelez-nous	-
1	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
4	4448520		Bumper, Door				$ 22.25
7	4452043		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
10	4451664		Fan & Bracket Assy		Appelez-nous	-
11	4450706		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	4452165		Lens, Light		Appelez-nous	-
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	4451739		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
15	4450492		Gasket, Door		Appelez-nous	-
19	4451477		Support, Insulation		Appelez-nous	-
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4451545		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4451397		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4450364		Insulation, Back		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81

    View Diagram in Separate Window       Print Part List
