SELECT A DIAGRAM

01 - Lower Oven


02 - Upper Oven


03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting, Optional

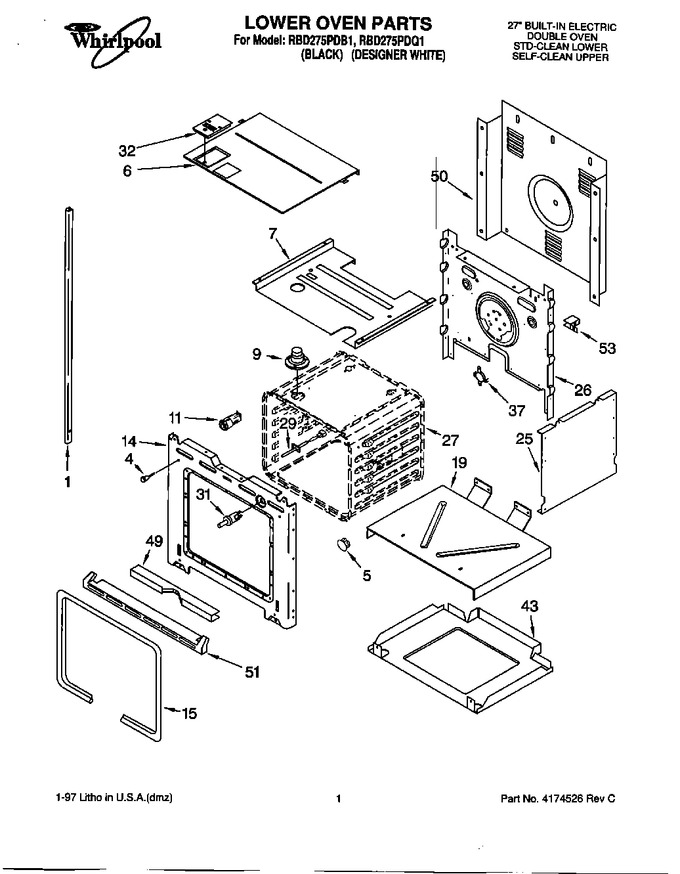

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450850		Trim, Side (rh Black)		Appelez-nous	-
1	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
1	4450853		Trim, Side (lh Black)		Appelez-nous	-
1	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw White)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
5	4448982		Plug, Button		Appelez-nous	-
6	4450536		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4451165		Partition		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	4449009		Tube, Vent		Appelez-nous	-
11	4450706		Oven Light Assy		Appelez-nous	-
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4450416		Frame, Front		Appelez-nous	-
15	4450492		Gasket, Door		Appelez-nous	-
19	4450541		Support, Insulation		Appelez-nous	-
25	4450528		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4451168		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	4450026		Sensor		Appelez-nous	-
31	4450819		Switch, Door		Appelez-nous	-
32	4449369		Vent Box Assy		Appelez-nous	-
32	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP4450249		Thermostat (tod) (temp.) Spst   (Replaces: 4450249)			Immediately	$ 211.50
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450526		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	4450544		Cover, Back		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4450364		Insulation, Back		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
