Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3076901 Plug-button Special Order $ 5.70

2 A3080001 Plug, Button (blk) Appelez-nous -
3 C8742401 Assy, Roller Bracket Appelez-nous -
4 M0286708 Nut, Speed Special Order $ 47.85

5 M0520102 Roller Appelez-nous -
6 M1205302 Rivet Special Order $ 5.85

7 M1200004 Cotter Pin K Appelez-nous -
8 M1200202 Pin K Appelez-nous -
9 M0585206 Clip, Wire Appelez-nous -
10 10906503 Insulation, L.foot Appelez-nous -
11 10505101 Tube, Drain Appelez-nous -
12 10988501 Kit, Water Tank Appelez-nous -
13 M0102303 Clamp Appelez-nous -
14 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

15 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

16 B5642907 Pop Rivet-alm Appelez-nous -
17 M0204339 Screw Bolt K Appelez-nous -
18 12023401 Assy, Fill Tube Appelez-nous -
19 C8971902 Tunnel, Heat Ex. Appelez-nous -
20 10505003 Clip-h V Box Appelez-nous -
21 10860102 Strip, Bot Hinge Tap Appelez-nous -
22 10187601 Tunnel Wire Appelez-nous -
23 10187501 Tunnel Wire Appelez-nous -
24 10860101 Strip, Bot Hinge Tap Appelez-nous -
25 10906502 Insulation, O.c.bottom Appelez-nous -
26 10906501 Insulation, R Foot Appelez-nous -
27 10508104 Baffle, M.c. Air Appelez-nous -
28 10508001 Support, Mach Comp. Appelez-nous -
29 M0108001 Clamp, Tube Appelez-nous -
30 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

NI A4554806 Snap Bushing Appelez-nous -
NI C8956101 Assy, Roller Bracket Appelez-nous -
NI 10527501 Clip, Tube Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

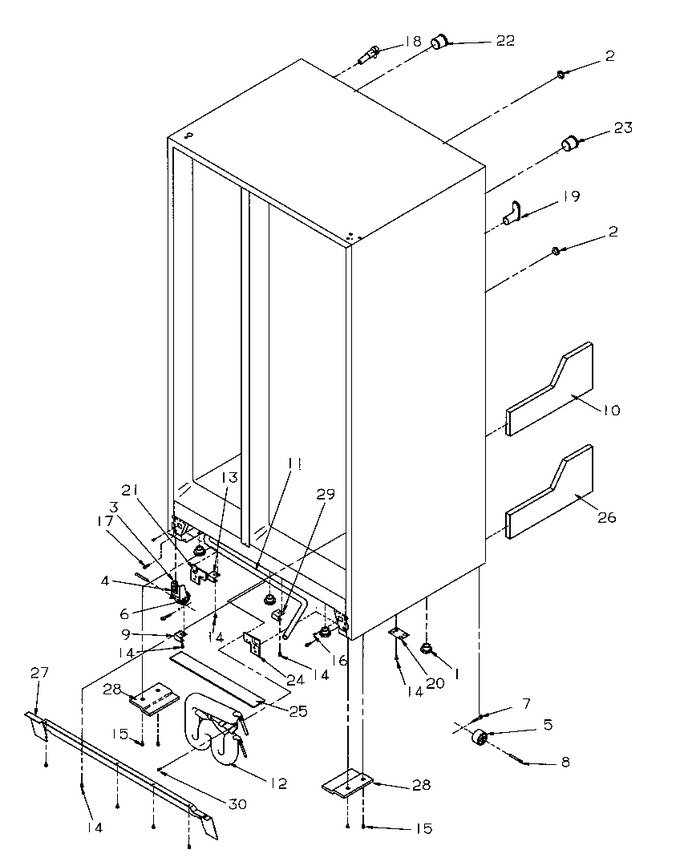

Diagram for SXD25S2L (BOM: P1190417W L)
