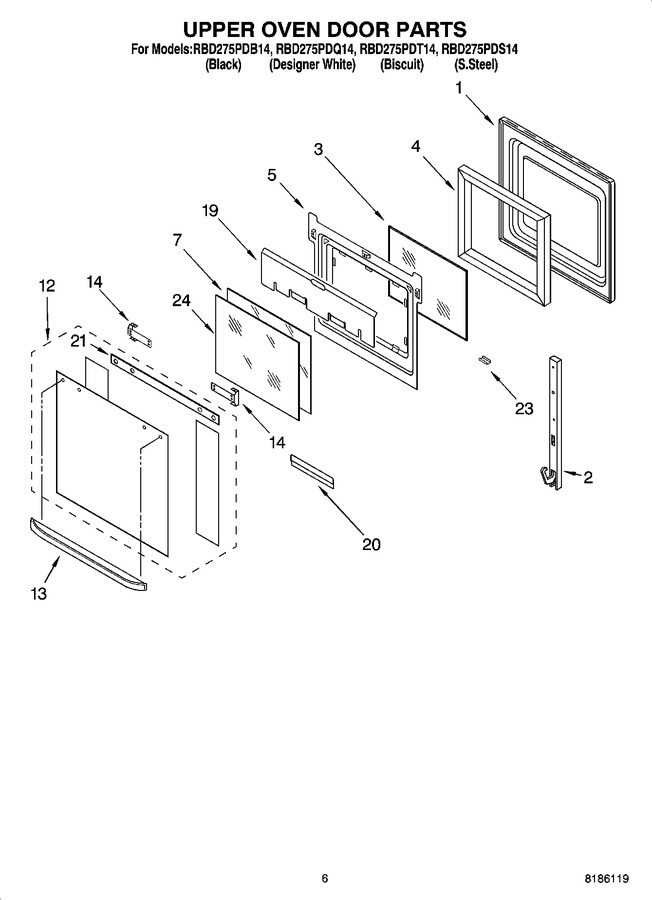

04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455617		Door Liner		Appelez-nous	-
2	WP9760572		Hinge, Door (l.side (white))   (Replaces: 8300572)				$ 111.96
2	9760569		Hinge, Door (r.side (green))   (Replaces: 8300569)				$ 118.42
2	9760570		Hinge, Door (l.side (green))   (Replaces: 8300570)				$ 117.73
2	WP9760571		Hinge, Door (r.side (white))   (Replaces: 8300571)			Immediately	$ 114.51
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	8300777		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
12	9759072		Door Glass, Assy (s.steel)		Appelez-nous	-
12	8300912		Door Glass, Assy (black Model)				$ 129.30
12	8300911		Door Glass, Assy (white Model)				$ 126.26
12	8300904		Door Glass Assy (biscuit)		Appelez-nous	-
13	4448405		Door Handle (black Model)		Appelez-nous	-
13	4448406		Door Handle (white Model)		Appelez-nous	-
13	8300255		Door Handle (biscuit Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4450813		Bracket, Handle				$ 24.20
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4450470		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	8300819		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
24	8300973		Glass. Inner		Appelez-nous	-
