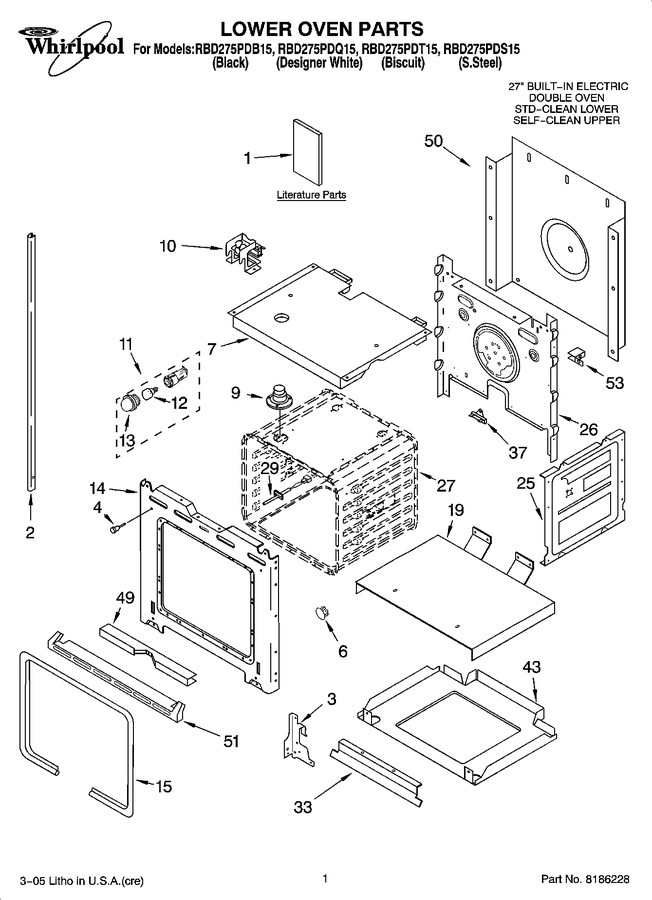

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	8300655		Installation Instructions		Appelez-nous	-
1	8300772		Use & Care Guide		Appelez-nous	-
1	8302068		Tech Sheet		Appelez-nous	-
2	WP8281236		Trim, Side (screw)   (Replaces: 8281236)				$ 8.16
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450851		Trim, Side (rh White)		Appelez-nous	-
2	4452122		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (lh White)		Appelez-nous	-
2	4452123		Trim, Side (lh Biscuit)		Appelez-nous	-
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
6	4450935		Plug, Door		Appelez-nous	-
7	4455864		Top, Chassis				$ 22.85
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4451664		Fan & Bracket Assy		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
13	4452165		Lens, Light		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	4455611		Frame, Front		Appelez-nous	-
15	4450492		Gasket, Door		Appelez-nous	-
19	4451477		Support, Insulation		Appelez-nous	-
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	4457116		Deflector, Vent		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4452414		Trim, Bottom (biscuit Model)		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
