SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts

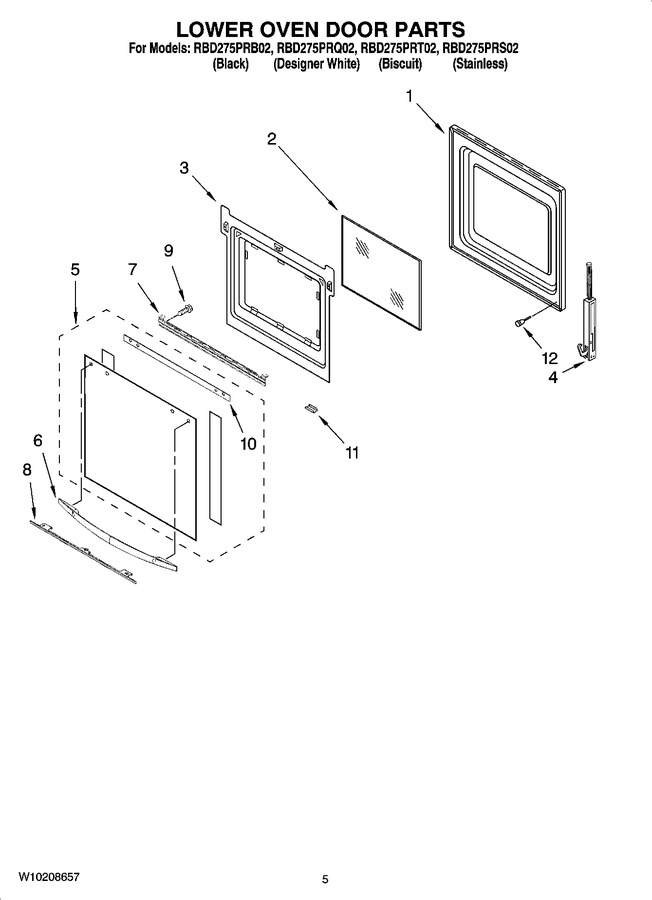

03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Liner, Door				$ 128.78
2	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
3	4457131		Retainer, Glass				$ 31.95
4	9760566		Hinge, Door (ss Model Only) (right Side)		Appelez-nous	-
4	9760564		Hinge, Door (left Side)		Appelez-nous	-
4	9760565		Hinge, Door (ss Model Only) (left Side)				$ 33.78
4	WP9760563		Hinge, Door (right Side)   (Replaces: 9760563)				$ 93.66
5	8303313		Assembly, Door Glass (stainless)		Appelez-nous	-
5	8303320		Assembly, Door Glass (black)		Appelez-nous	-
5	8303338		Door Glass, Assy (white)		Appelez-nous	-
5	8303341		Assembly, Door Glass (biscuit)		Appelez-nous	-
6	8302810		Door Handle (black)		Appelez-nous	-
6	8302812		Door Handle (biscuit)		Appelez-nous	-
6	8302811		Door Handle (white)		Appelez-nous	-
7	W10136472		Bracket, Handle		Appelez-nous	-
8	8303388BT		Retainer, Door (biscuit)		Appelez-nous	-
8	8303388WH		Retainer, Door (white)		Appelez-nous	-
8	8303388BL		Retainer, Door (black)		Appelez-nous	-
9	W10276642		Screw   (Replaces: 4451040)				$ 6.41
10	8303877		Seal-door		Appelez-nous	-
11	4450863		Retainer, Clip		Appelez-nous	-
12	4448520		Bumper, Door				$ 22.25
