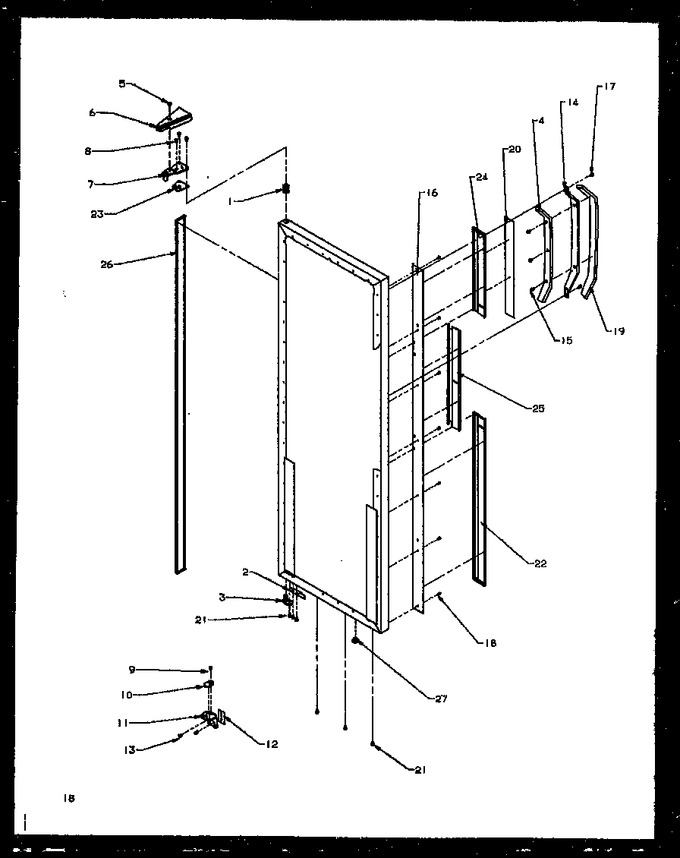

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
1	10393803		Bushing, Door (blk)		Appelez-nous	-
2	10161802		Door Stop		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751404)			Immediately	$ 7.55
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
4	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
4	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
4	D7863001		Inner Pad K		Appelez-nous	-
5	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
6	10126401		Hinge Cover - Chrome		Appelez-nous	-
6	10126402		Cover Hinge Black		Appelez-nous	-
7	10185101		Top Hinge-e Ct		Appelez-nous	-
8	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
9	WP489128		Screw   (Replaces: M0220417)				$ 11.40
10	R0181181		Kit,dr Closure   (Replaces: D7748302)			Immediately	$ 7.55
11	10163602		Rh Bot Hinge-bk E Ct		Appelez-nous	-
12	10399501		Kit,btm Hinge Shim		Appelez-nous	-
12	10399502		Kit,btm Hinge Shim		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	D7826603		Handle		Appelez-nous	-
15	M0215116		Screw		Appelez-nous	-
16	D7793202		Ref. Trim, Retainer		Appelez-nous	-
17	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
18	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
19	D7863101		Outer Pad K		Appelez-nous	-
19	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
19	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
20	C8984308		Thinplate Door		Appelez-nous	-
20	C8984309		Thinplate Door		Appelez-nous	-
21	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
22	D7792802		Lower Trim Ref Door K		Appelez-nous	-
22	D7792805		Trim Lwr Ref Door		Appelez-nous	-
22	D7792803		Trim Lwr Ref Door		Appelez-nous	-
23	B8389001		Shim, Top Hinge		Appelez-nous	-
24	D7852010		Trim		Appelez-nous	-
24	D7852007		Trim Upper Ref Door K		Appelez-nous	-
24	D7852008		Trim		Appelez-nous	-
25	D7853803		Trim Center Ref		Appelez-nous	-
25	D7853805		Trim Center Ref Dr		Appelez-nous	-
25	D7853802		Trim Center Refr K		Appelez-nous	-
26	10633301		Trim, Door		Appelez-nous	-
27	M0310308		Plug, Button (wht)		Appelez-nous	-
27	M0310336		Plug, Button (blk)		Appelez-nous	-
