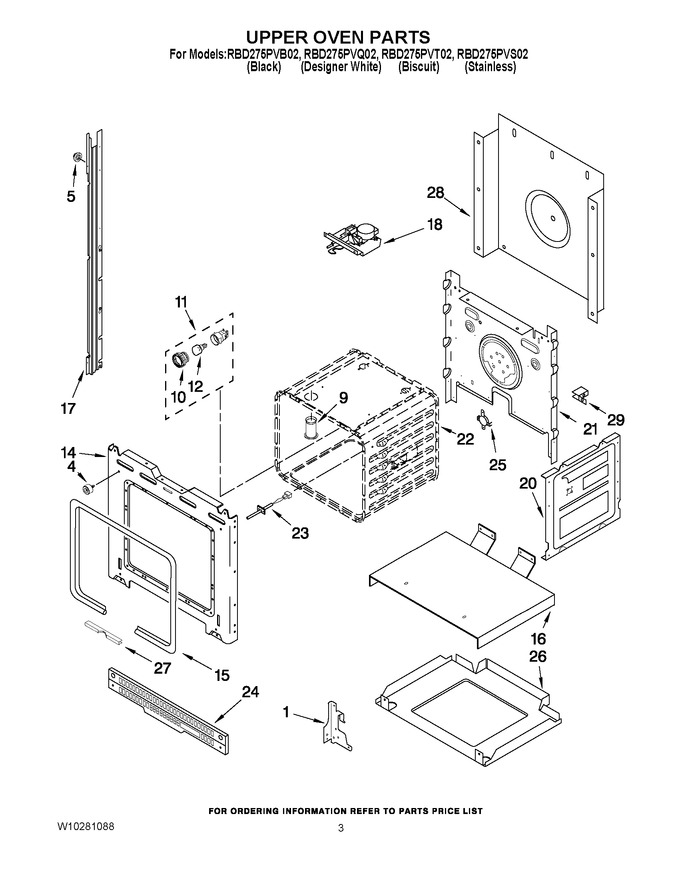

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4455605 Reciever, Hinge (left)   (Replaces: 4455605) In-Stock Immediately $ 115.36

1 WP4455606 Reciever, Hinge (right)   (Replaces: 4455606) In-Stock Immediately $ 119.41

4 W10105790 Bumper, Door Special Order $ 7.06

5 WP4448444 Grommet, Mounting Rail   (Replaces: 4448444) Special Order $ 7.48

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 116.63

10 W10067870 Lens, Light Special Order $ 65.50

11 WPW10734065 Assembly, Oven Light   (Replaces: W10009930) Special Order $ 96.63

12 WP4173175 Bulb, Light   (Replaces: 4452166) In-Stock Immediately $ 53.62

14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 W10130370 Frame, Front Special Order $ 79.39

15 WP4455381 Gasket, Door   (Replaces: 4455381) Special Order $ 176.77

16 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

16 4451477 Support, Insulation Appelez-nous -
17 WP8302793 Rail, Side (right)   (Replaces: 8302793) Special Order $ 147.37

17 8302794 Rail, Side (left) Special Order $ 164.19

18 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

18 WPW10195934 Latch, Motorized   (Replaces: W10195934) In-Stock Immediately $ 288.66

20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

20 W10782197 Side, Chassis   (Replaces: 4455641) Special Order $ 143.51

21 W10161109 Back, Chassis Appelez-nous -
21 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

22 N/P Liner, Oven (not Serviceable) Appelez-nous -
23 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 95.83

23 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

24 4452266 Vent, Center Special Order $ 60.71

25 WP9759243 Thermostat   (Replaces: 9759243) In-Stock Immediately $ 55.44

25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

26 4455529 Base, Chassis Appelez-nous -
27 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 8.86

27 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.56

28 WP4451747 Cover, Back   (Replaces: 4451747) Special Order $ 142.92

28 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

29 4449845 Support, Bracket Appelez-nous -
29 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.19

NI 4450364 Insulation, Back Appelez-nous -
NI 4449315 Insulation, Wrap Special Order $ 64.81
