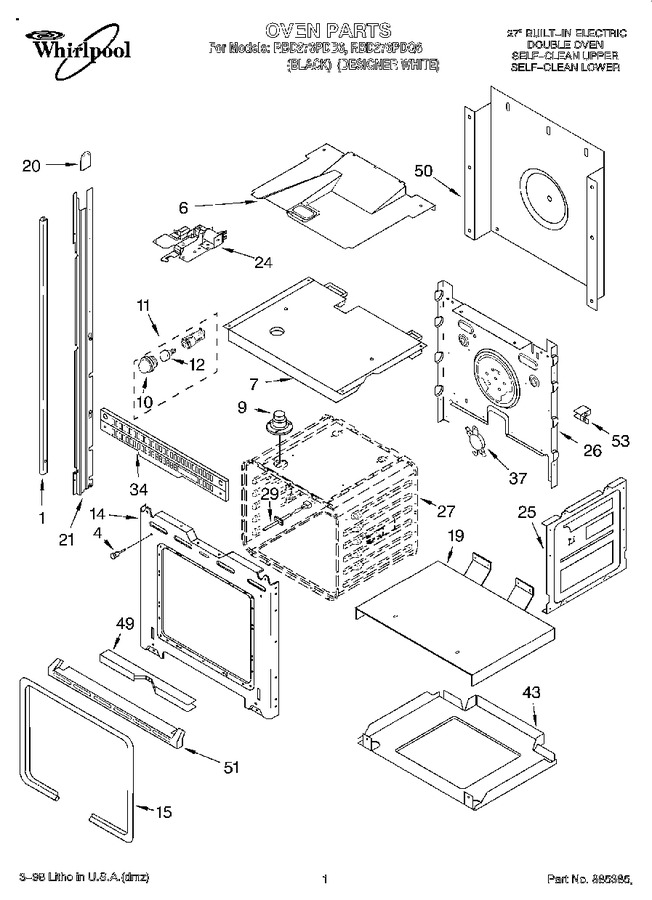

01 - Oven


02 - Oven Door


03 - Internal Oven


04 - Control Panel, Literature


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450850		Trim, Side (rh Black)		Appelez-nous	-
1	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
1	4450853		Trim, Side (lh Black)		Appelez-nous	-
1	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw White)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
6	4452200		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4452043		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452165		Lens, Light		Appelez-nous	-
11	4450706		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	4451739		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4449371)				$ 185.61
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
24	4451424		Latch Assembly				$ 149.58
24	4451663		Solenoid		Appelez-nous	-
24	4451422		Micro Switch N.c.		Appelez-nous	-
24	4451426		Microswitch		Appelez-nous	-
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4451545		Back, Chassis		Appelez-nous	-
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
34	4452161		Vent, Center		Appelez-nous	-
37	WP9759243		Thermostat (tod) (lower)   (Replaces: 4451442)			Immediately	$ 55.44
37	WP9759242		Thermostat (tod) (upper)   (Replaces: 4452223)			Immediately	$ 85.57
37	WP4449809		Thermostat (tod) (screw)   (Replaces: 4449809)			Immediately	$ 7.55
43	4451397		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449315		Insulation, Wrap				$ 64.81
