Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10881213L Assy, Fz Dr Fm (alm) Appelez-nous -
12 12139305 Handle, Door (almond) Appelez-nous -
21 10860902 Liner, Frz Door Appelez-nous -
33 R0181181 Closure-e Door   (Replaces: 12113203) In-Stock Immediately $ 7.55

41 10870301 Insul.-i & W Cavity Appelez-nous -
43 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

61 M0216517 Screw Appelez-nous -
71 D7791003 Gasket Cavity Appelez-nous -
73 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

81 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

82 10953113 Insert, Door Trim Appelez-nous -
91 B0523562 Insul. By The Ft. Appelez-nous -
92 10953114 Insert, Trim (almond) Appelez-nous -
101 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

141 M0226705 Screw, Shoulder Appelez-nous -
171 12344002 Harness-fz Dr Appelez-nous -
181 10359709 Gasket (w Frz Dr) Appelez-nous -
211 C8982801 Retainer, Door Liner Appelez-nous -
221 D7828601 Retainer, Door Liner Appelez-nous -
291 C8992901 Clip Appelez-nous -
301 M0219730 Screw Special Order $ 7.65

321 10941501 Insul, Batt Appelez-nous -
341 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

351 C8972406 Stop, L Door Appelez-nous -
361 876370 Insulation Bott (1= 1ft)   (Replaces: B0523588) Special Order $ 243.14

371 M0360401 Light Bulb (220/250) 6 Watt Appelez-nous -
401 12016901 Insul, Batt (ref. Door) Appelez-nous -
411 12016902 Insul, Batt (ref. Door) Appelez-nous -
471 M0216705 Screw Special Order $ 5.81

1221 M0311602 Plug, Button (white) Appelez-nous -
1682 10810509 Trim, Bottom Door Appelez-nous -
1722 10810309 Trim-l Top Fz Dr Appelez-nous -
1752 10810602 Trim, L Ctr I & W Dr Appelez-nous -
1792 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

1822 M0216517 Screw Appelez-nous -
1832 10852212 Ret-up Fz Trim Appelez-nous -
1842 10852215 Ret-lw Fz Trim Appelez-nous -
2801 B0523596 Insul. By The Ft. Appelez-nous -
NI 10912902 Instr-install Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

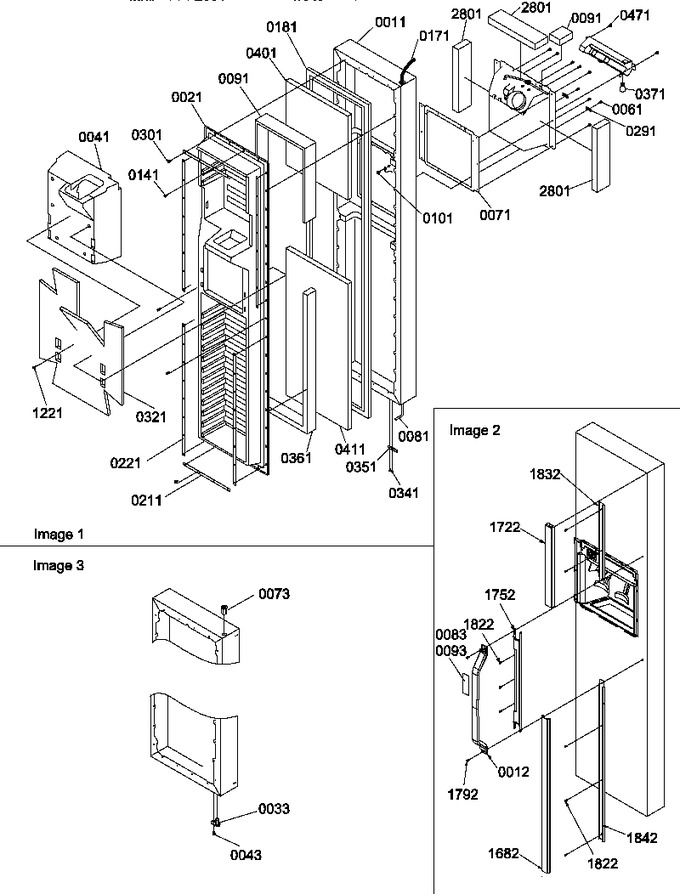

Diagram for SXD322L (BOM: P1305703W L)
