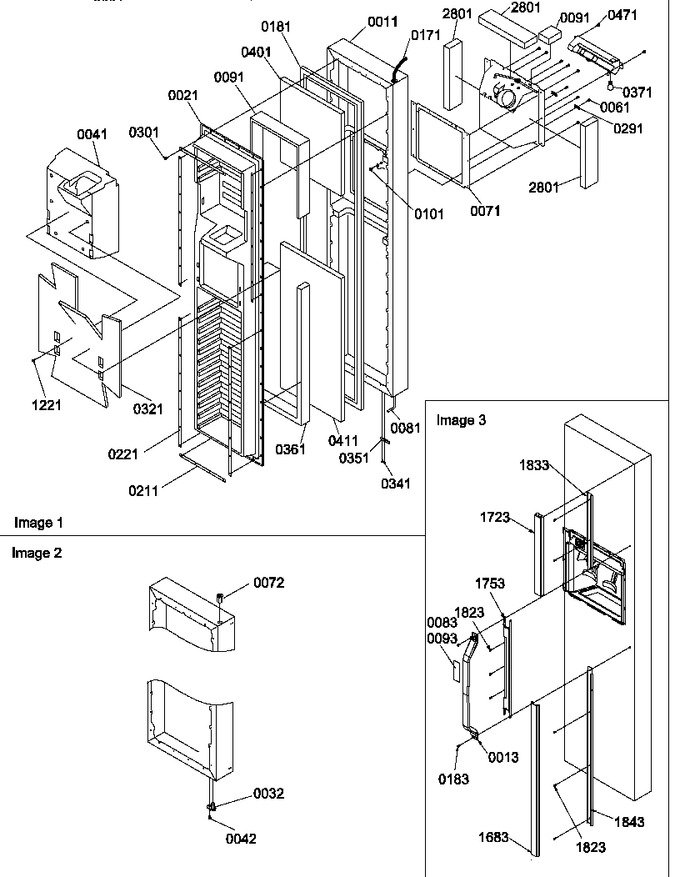

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881213L		Assy, Fz Dr Fm (alm)		Appelez-nous	-
13	12139305		Handle, Door (almond)		Appelez-nous	-
21	10860902		Liner, Frz Door		Appelez-nous	-
32	R0181181		Closure-e Door   (Replaces: 12113203)			Immediately	$ 7.55
41	10870301		Insul.-i & W Cavity		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
61	M0216517		Screw		Appelez-nous	-
71	D7791003		Gasket Cavity		Appelez-nous	-
72	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
81	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
83	10953113		Insert, Door Trim		Appelez-nous	-
91	B0523562		Insul. By The Ft.		Appelez-nous	-
93	10953114		Insert, Trim (almond)		Appelez-nous	-
101	WP489399		Screw   (Replaces: M0232903)				$ 7.30
171	12363101		Harness, Frz Door		Appelez-nous	-
181	10359709		Gasket (w Frz Dr)		Appelez-nous	-
183	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
211	C8982801		Retainer, Door Liner		Appelez-nous	-
221	D7828601		Retainer, Door Liner		Appelez-nous	-
291	C8992901		Clip		Appelez-nous	-
301	M0219730		Screw				$ 7.65
321	10941501		Insul, Batt		Appelez-nous	-
341	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
351	C8972406		Stop, L Door		Appelez-nous	-
361	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
371	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
401	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
411	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
471	M0216705		Screw				$ 5.81
1221	M0311602		Plug, Button (white)		Appelez-nous	-
1683	10810509		Trim, Bottom Door		Appelez-nous	-
1723	10810309		Trim-l Top Fz Dr		Appelez-nous	-
1753	10810602		Trim, L Ctr I & W Dr		Appelez-nous	-
1823	M0216517		Screw		Appelez-nous	-
1833	10852212		Ret-up Fz Trim		Appelez-nous	-
1843	10852215		Ret-lw Fz Trim		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-
