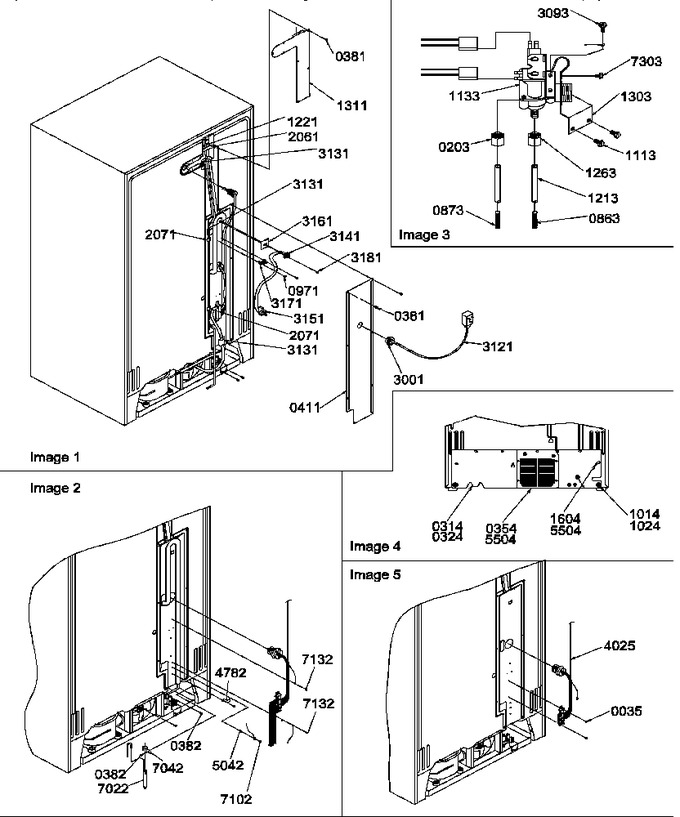

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 203 | M0753003 | Nut, Sleeve |
|
- | |||||
| 314 | 12041606 | Assy, Mc Back |
|
- | |||||
| 324 | M0201216 | Screw - Sm |
|
- | |||||
| 354 | 12039903 | Back, M.c. |
|
- | |||||
| 381 | M0227217 | Screw, Sm |
|
- | |||||
| 382 | M0227217 | Screw, Sm |
|
- | |||||
| 411 | 10178406 | Cover, O.c.back |
|
- | |||||
| 863 | A1055101 | Spring, Antikink |
|
- | |||||
| 873 | A1055105 | Spring, Anti Kink |
|
- | |||||
| 971 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 1014 | WP489474 | Screw (Replaces: M0220634) |
|
Immediately | $ 8.55 | ||||
| 1024 | C8960601 | Foot, Outer Case |
|
- | |||||
| 1113 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 1133 | D7827205 | Valve-water |
|
- | |||||
| 1213 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 1221 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 1263 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 1303 | 10496302 | Brkt, Water Valve |
|
- | |||||
| 1311 | 10178505 | Cover - Wire |
|
- | |||||
| 1604 | M0108001 | Clamp, Tube |
|
- | |||||
| 2061 | A3189336 | Gasket, Foam |
|
- | |||||
| 2071 | M0104105 | Clip, Cord |
|
- | |||||
| 3001 | A4554813 | Snap Bushing |
|
- | |||||
| 3093 | M0233803 | Screw, Tf |
|
- | |||||
| 3121 | B5669005 | Cord, Power |
|
- | |||||
| 3131 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 3141 | C8969204 | Block, Term |
|
- | |||||
| 3151 | 10786301 | Jumper, Pwr Cord |
|
- | |||||
| 3161 | 10377604 | Insul-term Blk |
|
- | |||||
| 3171 | Y10203701 | Strain Relief |
|
- | |||||
| 3181 | M0219758 | Screw |
|
- | |||||
| 4025 | 12177501 | Harness, Cabinet |
|
- | |||||
| 4782 | B5794201 | Clamp |
|
- | |||||
| 5042 | M0272803 | Lock Washer |
|
- | |||||
| 5504 | M0227217 | Screw, Sm |
|
- | |||||
| 7022 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 7042 | 10547001 | Clip, Drier |
|
- | |||||
| 7102 | M0232330 | Screw, Spextite |
|
- | |||||
| 7132 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 7303 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| NI | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 |
