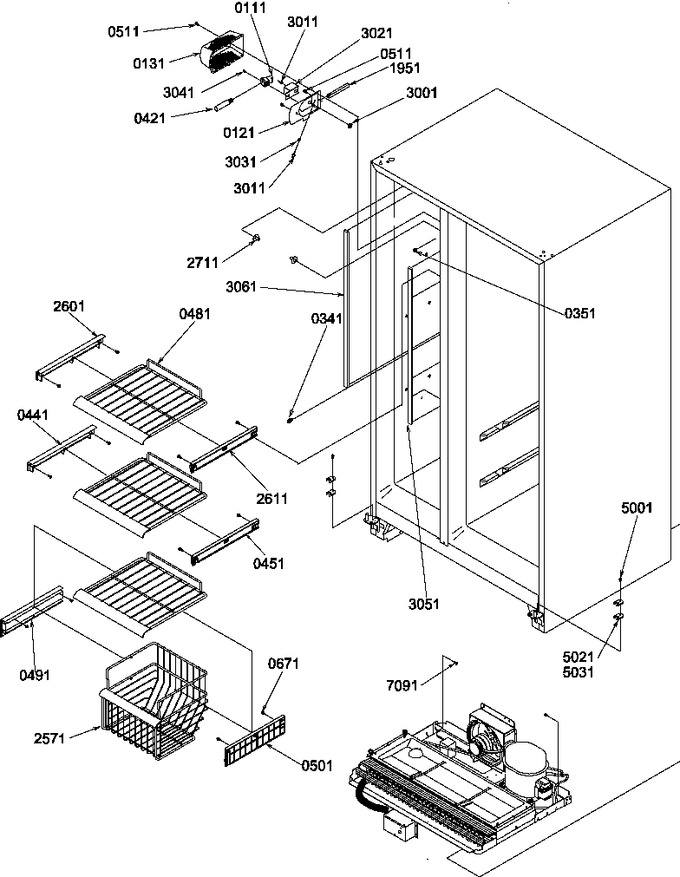

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 111 | D7845102 | Socket, Lamp |
|
- | |||||
| 121 | D7845204 | Plate - Lt Socket |
|
- | |||||
| 131 | D7786602 | Shield, Light |
|
- | |||||
| 341 | M0322202 | Tie Wire |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 441 | 12012801 | Rail, L. Shelf |
|
- | |||||
| 451 | 10991401 | Rail- R Shelf |
|
- | |||||
| 481 | 12012102 | Shelf, Sld. Freezer |
|
- | |||||
| 491 | 12013001 | Rail, L. Dbl Shelf |
|
- | |||||
| 501 | 10991801 | Rail, R Double |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 671 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1951 | 10250002 | Cover, Wire |
|
- | |||||
| 2571 | 12011902 | Basket, 11`` Freezer |
|
- | |||||
| 2601 | 12012802 | Rail, L. Shelf |
|
- | |||||
| 2611 | 10991402 | Rail, R Shelf |
|
- | |||||
| 2711 | M0560005 | Support |
|
- | |||||
| 3001 | A4554813 | Snap Bushing |
|
- | |||||
| 3011 | A4539626 | Pop Rivet |
|
- | |||||
| 3021 | D7844902 | Socket Cover |
|
- | |||||
| 3031 | M0320910 | Term |
|
- | |||||
| 3041 | M0213129 | Screw |
|
- | |||||
| 3051 | A3189347 | Gasket |
|
- | |||||
| 3061 | A3189346 | Gasket |
|
- | |||||
| 5001 | W11227370 | Screw, Tc (Replaces: M0220431) |
|
Immediately | $ 14.91 | ||||
| 5021 | B8387701 | Shim, Door Closure |
|
- | |||||
| 5031 | B8387702 | Shim, Door Closure |
|
- | |||||
| 7091 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
