SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain Systems, Rollers And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice Bucket Auger,im & Im Parts


07 - Ice Maker/control Assy


08 - Ice/water Cavity & Elec Brkt Assy


09 - Machine Compartment


10 - Ref Door And Accessories


11 - Ref/fz/shelves, Lights And Hinges


12 - Shelves/deli, Crisper Assy & Toe Grille

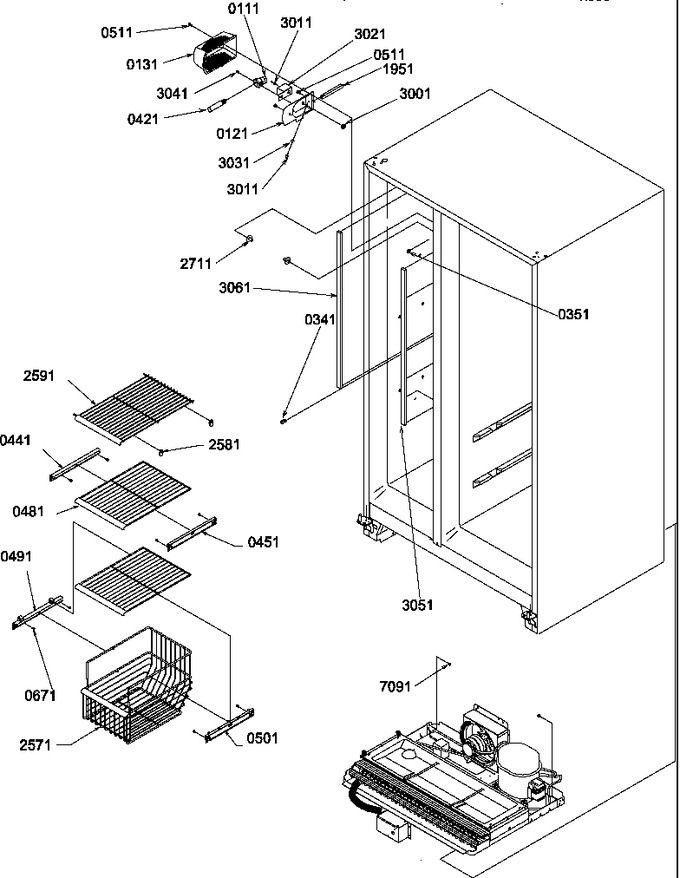

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
111	D7845102		Socket, Lamp		Appelez-nous	-
121	D7845204		Plate - Lt Socket		Appelez-nous	-
131	D7786602		Shield, Light		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
441	12012801		Rail, L. Shelf		Appelez-nous	-
451	10991401		Rail- R Shelf		Appelez-nous	-
481	12353301		Shelf-sta/sl Fz		Appelez-nous	-
491	12015101		Rail, Shelf (lt)		Appelez-nous	-
501	10972801		Rail, Shelf (rt)		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
671	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1951	10250002		Cover, Wire		Appelez-nous	-
2571	12352206		Basket, 13`` Frz		Appelez-nous	-
2581	C8973801		Support, Frz Shelf				$ 8.35
2591	12353101		Shelf-sta Fz		Appelez-nous	-
2711	M0560005		Support		Appelez-nous	-
3001	A4554813		Snap Bushing		Appelez-nous	-
3011	A4539626		Pop Rivet		Appelez-nous	-
3021	D7844902		Socket Cover		Appelez-nous	-
3031	M0320910		Term		Appelez-nous	-
3041	M0213129		Screw		Appelez-nous	-
3051	A3189347		Gasket		Appelez-nous	-
3061	A3189346		Gasket		Appelez-nous	-
7091	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06

    View Diagram in Separate Window       Print Part List
