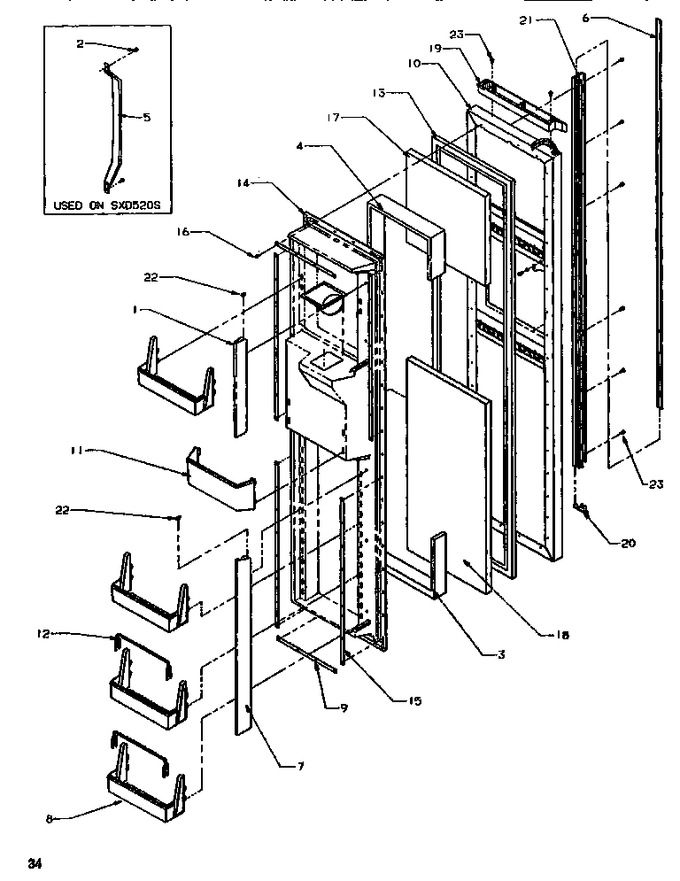

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10063207 | Dike, I & W |
|
- | |||||
| 2 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 3 | B0523563 | Insulation Ft. K |
|
- | |||||
| 4 | B0523562 | Insul. By The Ft. |
|
- | |||||
| 5 | 10809004 | Handle, Door (white) |
|
- | |||||
| 5 | 10809005 | Handle, Door (almond) |
|
- | |||||
| 7 | 10063208 | Dike, I & W |
|
- | |||||
| 8 | 10525508 | Shelf, Frz Dr |
|
- | |||||
| 9 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 10 | 10881206L | Ass`y, Frz Door(almond) |
|
- | |||||
| 10 | 10881206W | Ass`y, Frz Door(white) |
|
- | |||||
| 11 | Y10534708 | Shelf, Half Frz Door |
|
- | |||||
| 13 | 10359702 | Gasket (w Frz Dr) |
|
- | |||||
| 14 | 10860801 | Liner, Frz Dr I/w |
|
- | |||||
| 15 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 16 | M0219730 | Screw |
|
$ 7.65 | |||||
| 17 | 10882201 | Insul, Batt (ref. Door) |
|
- | |||||
| 18 | 10882202 | Insul, Batt (ref. Door) |
|
- | |||||
| 22 | 10063102 | Clip, Door Dike |
|
- |
