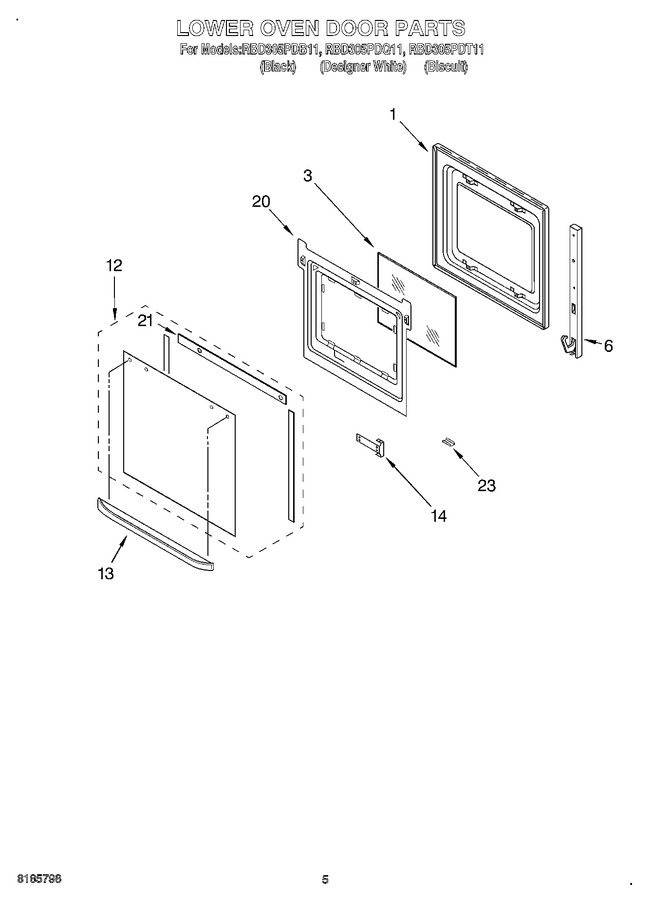

03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel


07 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
6	WP4455523		Hinge, Door   (Replaces: 4455523)				$ 77.16
12	4452065		Door Glass, Outer (black Model)		Appelez-nous	-
12	4452066		Door Glass, Outer (white Model)		Appelez-nous	-
12	4452859		Door Glass, Outer (biscuit Model)		Appelez-nous	-
13	4448855		Door Handle (white Model)		Appelez-nous	-
13	4452860		Handle, Door (biscuit)		Appelez-nous	-
13	4448854		Door Handle (black Model)				$ 74.07
14	4450813		Bracket, Handle (2)				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	WP4449743		Screw (2)   (Replaces: 4449743)				$ 7.55
20	4451671		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	4451674		Seal, Door Top		Appelez-nous	-
23	WP4449743		Retainer, Clip (screw)   (Replaces: 4449743)				$ 7.55
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
