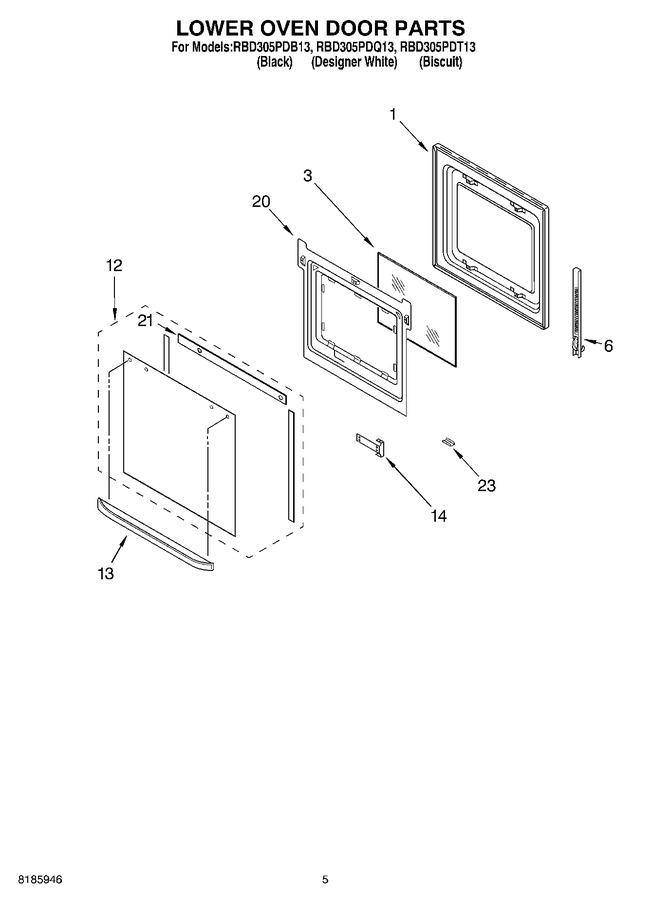

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 370.46
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
6	9760570		Hinge, Door (l.side)   (Replaces: 8300570)				$ 117.73
6	WP3400832		Hinge, Door (screw)   (Replaces: 3400832)			Immediately	$ 8.18
6	8300565		Hinge, Door (r.side)		Appelez-nous	-
12	4452065		Door Glass, Outer (black Model)		Appelez-nous	-
12	4452859		Door Glass, Outer (biscuit Model)		Appelez-nous	-
12	4452066		Door Glass, Outer (white Model)		Appelez-nous	-
13	4452860		Handle, Door (biscuit)		Appelez-nous	-
13	4448854		Door Handle (black Model)				$ 74.07
13	4448855		Door Handle (white Model)		Appelez-nous	-
14	WP4449743		Screw (2)   (Replaces: 4449743)				$ 7.55
14	4450813		Bracket, Handle (2)				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
20	8300778		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	8300820		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
23	WP4449743		Retainer, Clip (screw)   (Replaces: 4449743)				$ 7.55
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
