SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Crisper & Deli Assemblies & Toe Grill

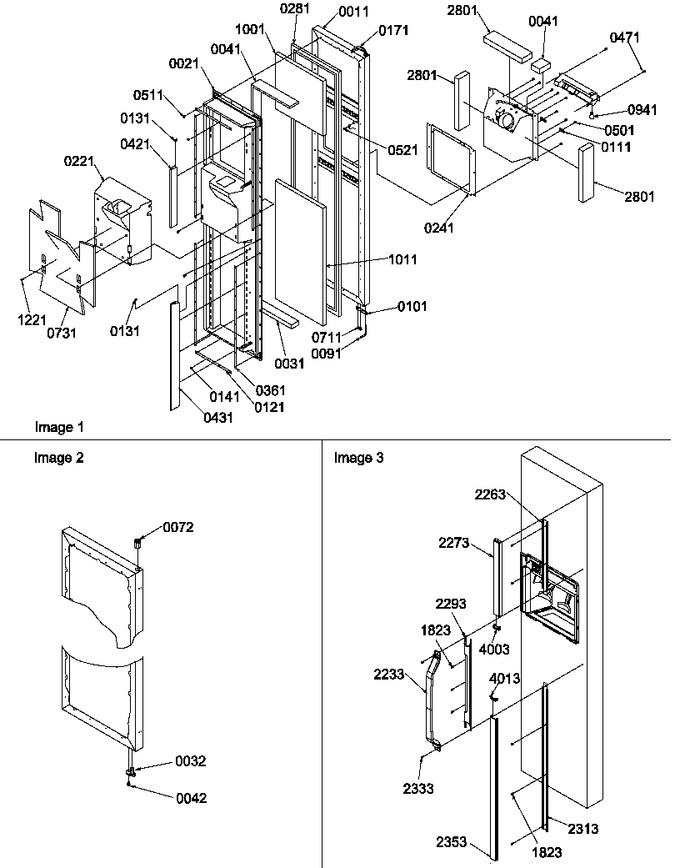

04 - Drain System, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Light


07 - Ice Bucket Auger, Im Assy, & Im Parts


08 - Ice Maker/control Assy


09 - Ice/water Cavity & Elec Brkt Assy


10 - Machine Compartment


11 - Ref Door And Accessories


12 - Ref/fz Shelves, Lights, And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881206E		Assy, Fz Dr Fm (black)		Appelez-nous	-
21	10860801		Liner, Frz Dr I/w		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure-e Door   (Replaces: 12113203)			Immediately	$ 7.55
41	B0523562		Insul. By The Ft.		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
72	C8964402		Bushing, Top		Appelez-nous	-
91	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
101	C8972403		Stop, Door (blk)		Appelez-nous	-
111	C8992901		Clip		Appelez-nous	-
121	C8982801		Retainer, Door Liner		Appelez-nous	-
131	10063102		Clip, Door Dike		Appelez-nous	-
141	M0226705		Screw, Shoulder		Appelez-nous	-
171	12363201		Harness, Frz Door		Appelez-nous	-
221	10870301		Insul.-i & W Cavity		Appelez-nous	-
241	D7791003		Gasket Cavity		Appelez-nous	-
281	10359711		Gasket Door Frz		Appelez-nous	-
361	D7828601		Retainer, Door Liner		Appelez-nous	-
421	10063207		Dike, I & W		Appelez-nous	-
431	10063208		Dike, I & W		Appelez-nous	-
471	M0216705		Screw				$ 5.81
501	M0216517		Screw		Appelez-nous	-
511	M0219730		Screw				$ 7.65
521	WP489399		Screw   (Replaces: M0232903)				$ 7.30
711	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
731	10941501		Insul, Batt		Appelez-nous	-
941	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
1001	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
1011	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
1221	M0311602		Plug, Button (white)		Appelez-nous	-
1823	M0216517		Screw		Appelez-nous	-
2233	12139306		Handle, Door (black)		Appelez-nous	-
2263	10852212		Ret-up Fz Trim		Appelez-nous	-
2273	10810311		Trim-e Top Fz Dr		Appelez-nous	-
2293	10810603		Trim- E Ctr I&w Dr		Appelez-nous	-
2313	10852215		Ret-lw Fz Trim		Appelez-nous	-
2333	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
2353	10810511		Trim, Bottom Door Ebony		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-
4003	10953115		Insert, Trim (black)		Appelez-nous	-
4013	10953116		Insert, Trim (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
