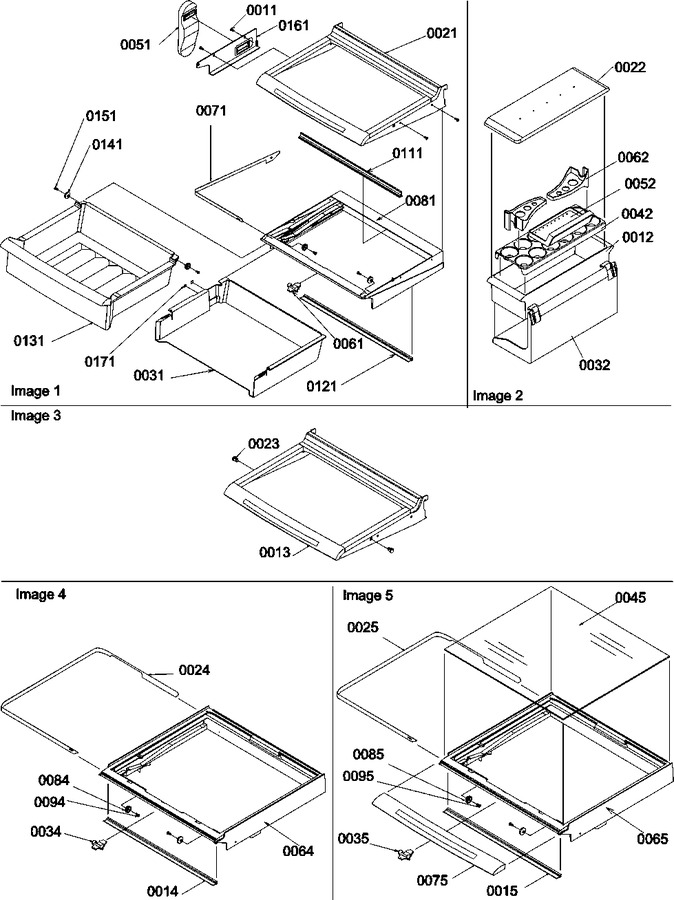

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0213129		Screw		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
21	10809609		Shelf, Stationary		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
24	10882701		Band, Crisper		Appelez-nous	-
25	10882701		Band, Crisper		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
35	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
45	Y10370066		Glass, Shelf		Appelez-nous	-
52	10310901		Tray, Butter		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
65	10782901		Frame,crisper		Appelez-nous	-
75	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783803		Frame, Deli		Appelez-nous	-
131	10784201		Pan, Deli		Appelez-nous	-
