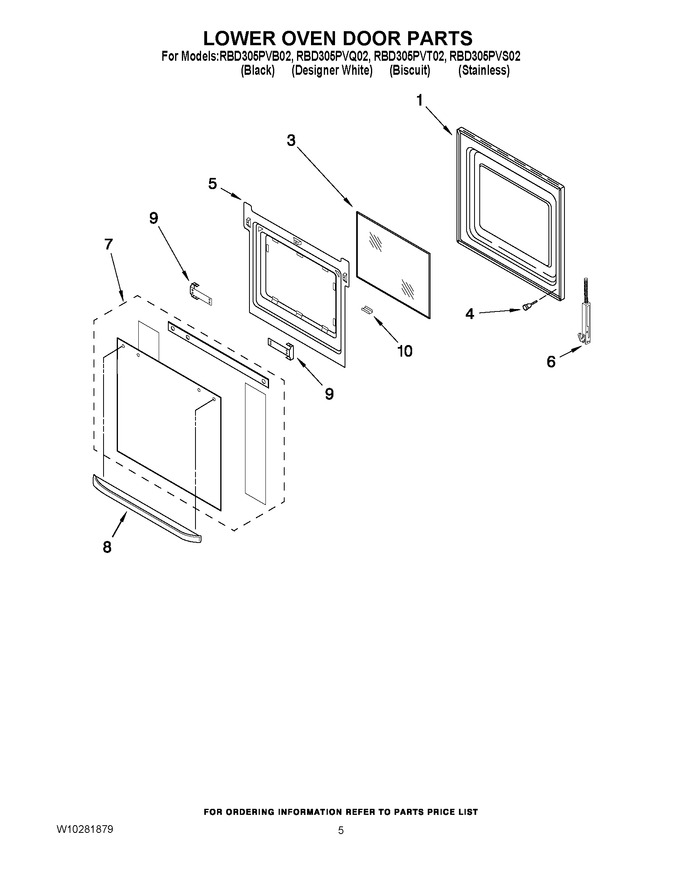

03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 370.46
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	4448520		Bumper, Door				$ 22.25
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
6	WP4449743		Hinge, Door (for Stainless Model Only) (screw)   (Replaces: 4449743)				$ 7.55
6	9760565		Hinge, Door (right)				$ 33.78
6	9760566		Hinge, Door (left)		Appelez-nous	-
6	9760567		Hinge, Door (for Stainless Model Only) (right)		Appelez-nous	-
6	9760568		Hinge, Door (for Stainless Model Only) (left)		Appelez-nous	-
7	W10200754		Assembly, Door Glass (black)				$ 140.66
7	W10200755		Assembly, Door Glass (white)				$ 137.30
7	W10401225		Assembly, Door Glass (stainless)   (Replaces: W10176986)				$ 321.60
7	W10200756		Assembly, Door Glass (biscuit)				$ 138.93
8	W10169801		Door Handle (black)				$ 79.57
8	W10169803		Door Handle (white)				$ 73.49
8	W10169805		Door Handle (biscuit)		Appelez-nous	-
8	W10169798		Door Handle (stainless)				$ 78.71
9	4455804		Bracket, Handle (left)				$ 25.95
9	4455803		Bracket, Handle (right)				$ 30.70
10	4450863		Retainer, Glass Clip (black)		Appelez-nous	-
10	4450864		Retainer,glass Clip (white)		Appelez-nous	-
10	4452119		Retainer,glass Clip (biscuit)		Appelez-nous	-
10	W10158497		Retainer,glass Clip (stainless)				$ 5.65
